Rear Combination Lamp Replacement (GMC)

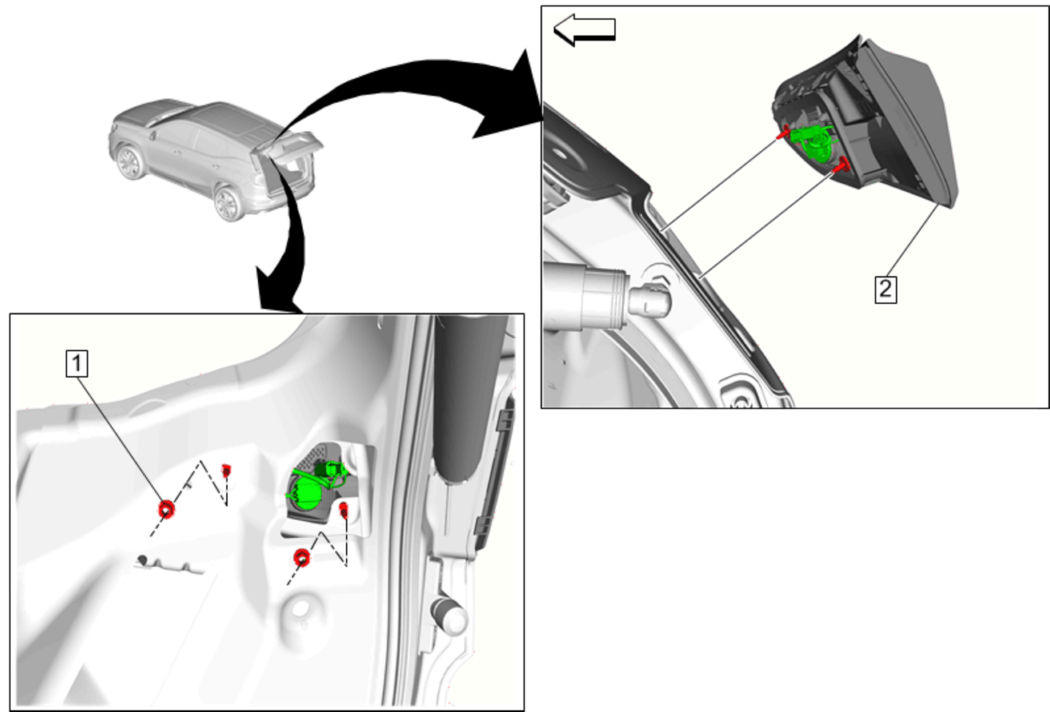

Fig 1: Rear Combination Lamp (GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement
1	Rear Combination Lamp Nut [2x] CAUTION: Refer to Fastener Caution Tighten 4.7 N.m (42 lb in)
2	Rear Combination Lamp Procedure Disconnect the electrical connectors. Tilt the inboard edge of the lamp rearward while shifting the outboard edge off the lip of the liftgate.

Callout

Component Name

Rear Combination Lamp Nut [2x]

CAUTION:

Tighten
4.7 N.m (42 lb in)

Rear Combination Lamp

Procedure

Disconnect the electrical connectors.
Tilt the inboard edge of the lamp rearward while shifting the outboard edge off the lip of the liftgate.
