Rear Combination Lamp Replacement (Chevrolet)

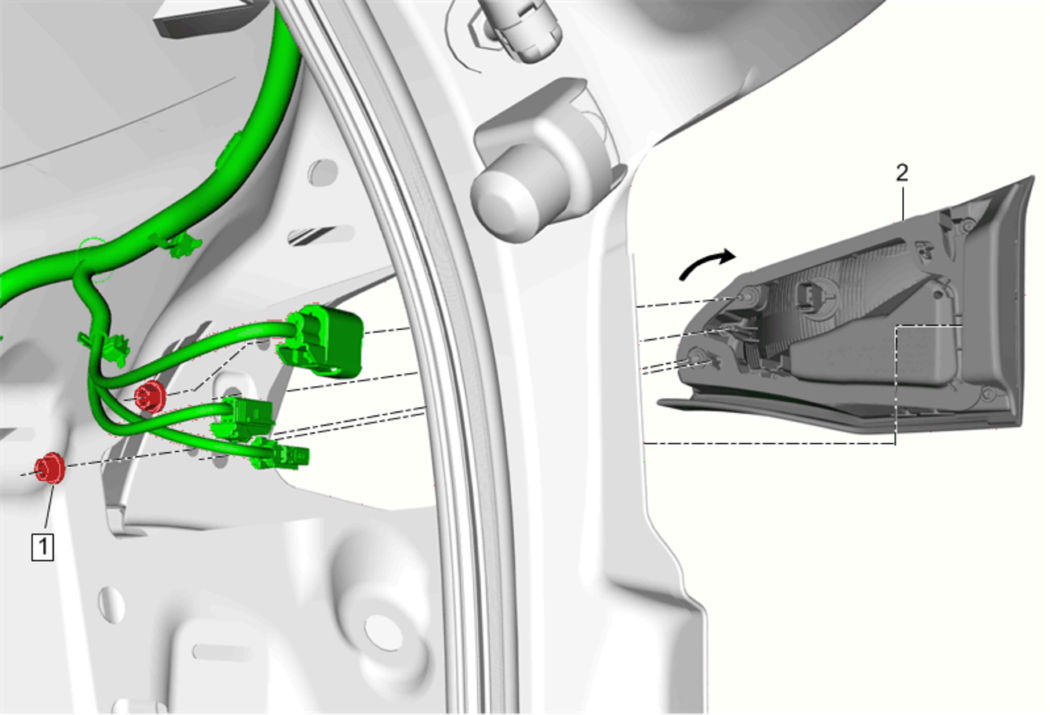

Fig 1: Rear Combination Lamp (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement
1	Rear Combination Lamp Nut [2x] CAUTION: Refer to Fastener Caution Tighten 4.7 N.m (42 lb in)
2	Rear Combination Lamp Procedure Disconnect the electrical connectors. Pull lamp rearward and tilt outward to remove from liftgate.

Callout

Component Name

Rear Combination Lamp Nut [2x]

CAUTION:

Tighten
4.7 N.m (42 lb in)

Rear Combination Lamp

Procedure
