Headlamp Replacement (GMC)

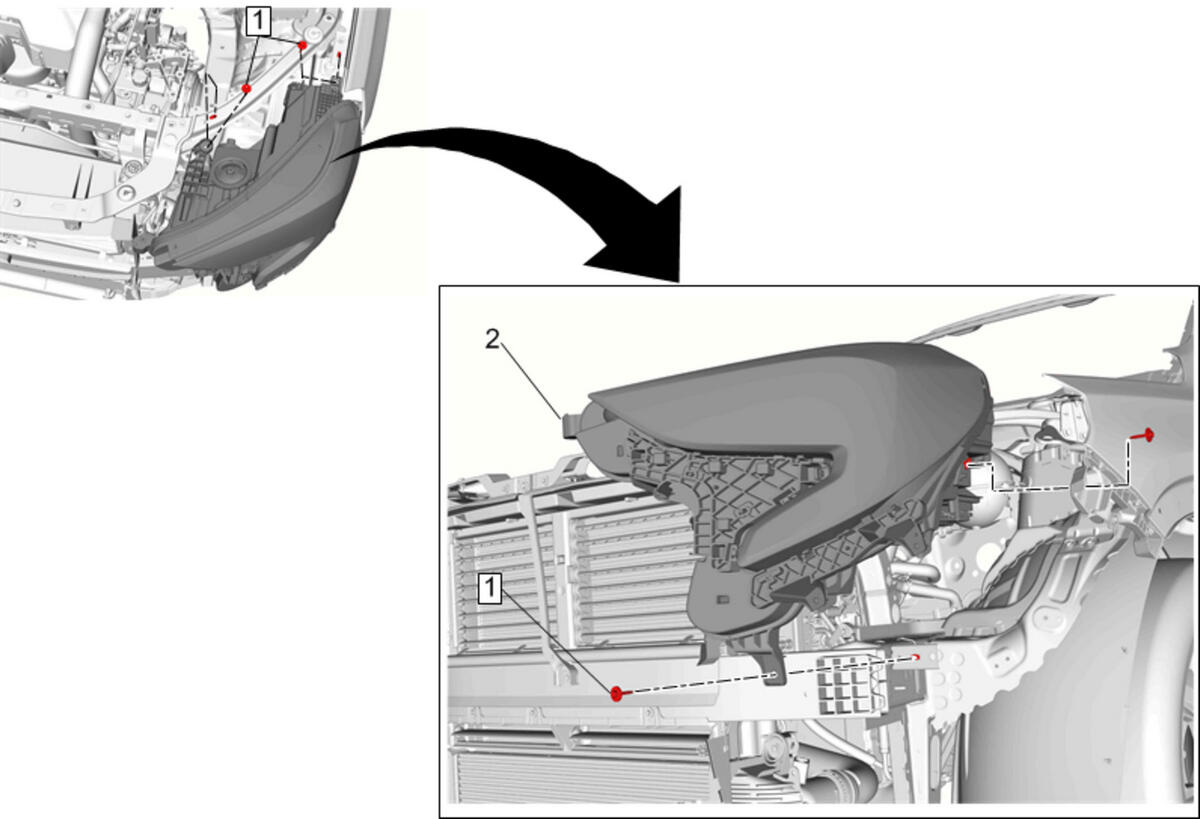

Fig 1: Headlamp (GMC-Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (Terrain)
1	Headlamp Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Procedure Disconnect all electrical connectors. Transfer components as necessary. After installation, aim the headlamps. Refer to Headlamp Aiming

Callout

Component Name

Headlamp Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Headlamp

Procedure
