Front Side Door Inside Handle Illumination Lamp Replacement (Equinox)

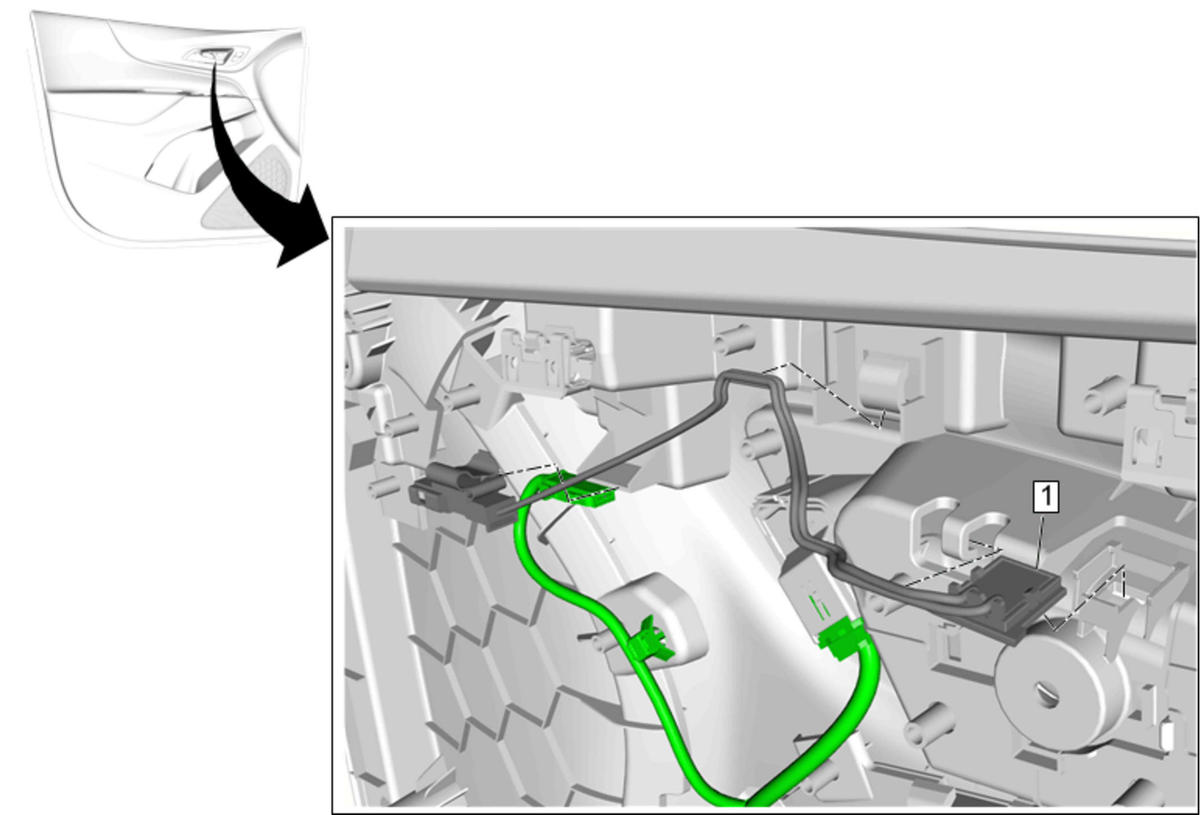

Fig 1: Front Side Door Inside Handle Illumination Lamp (Equinox)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement (Equinox)
1	Front Side Door Inside Handle Illumination Lamp Procedure Disconnect the electrical connector. Unsnap the lamp from the trim panel tabs.

Callout

Component Name

Front Side Door Inside Handle Illumination Lamp

Procedure
