Front Side Door Inside Handle Illumination Lamp Replacement (Denali)

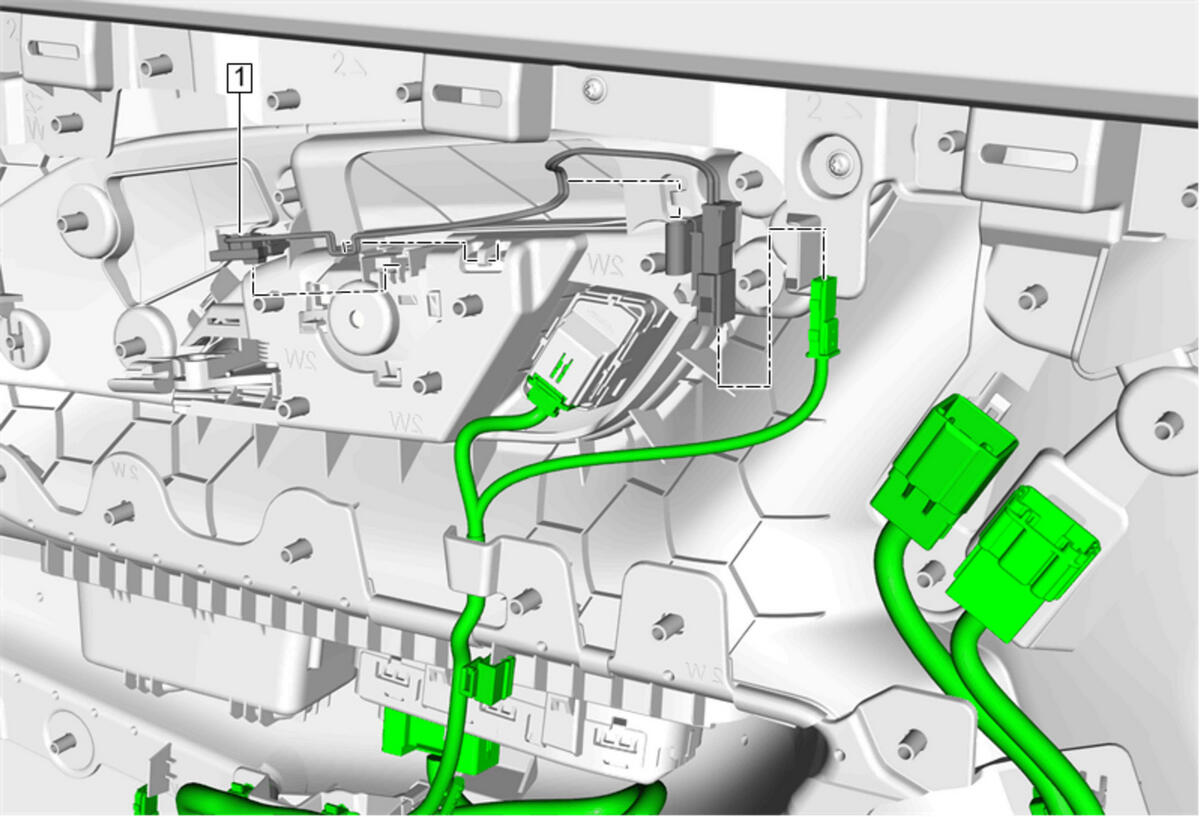

Fig 1: Front Side Door Inside Handle Illumination Lamp (Denali)
GM4694901Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Trim Replacement (Equinox)Front Side Door Trim Replacement (Terrain)
1 Front Side Door Inside Handle Illumination Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Unsnap the lamp from the trim panel tabs.
