Front Floor Console Compartment Lamp Replacement

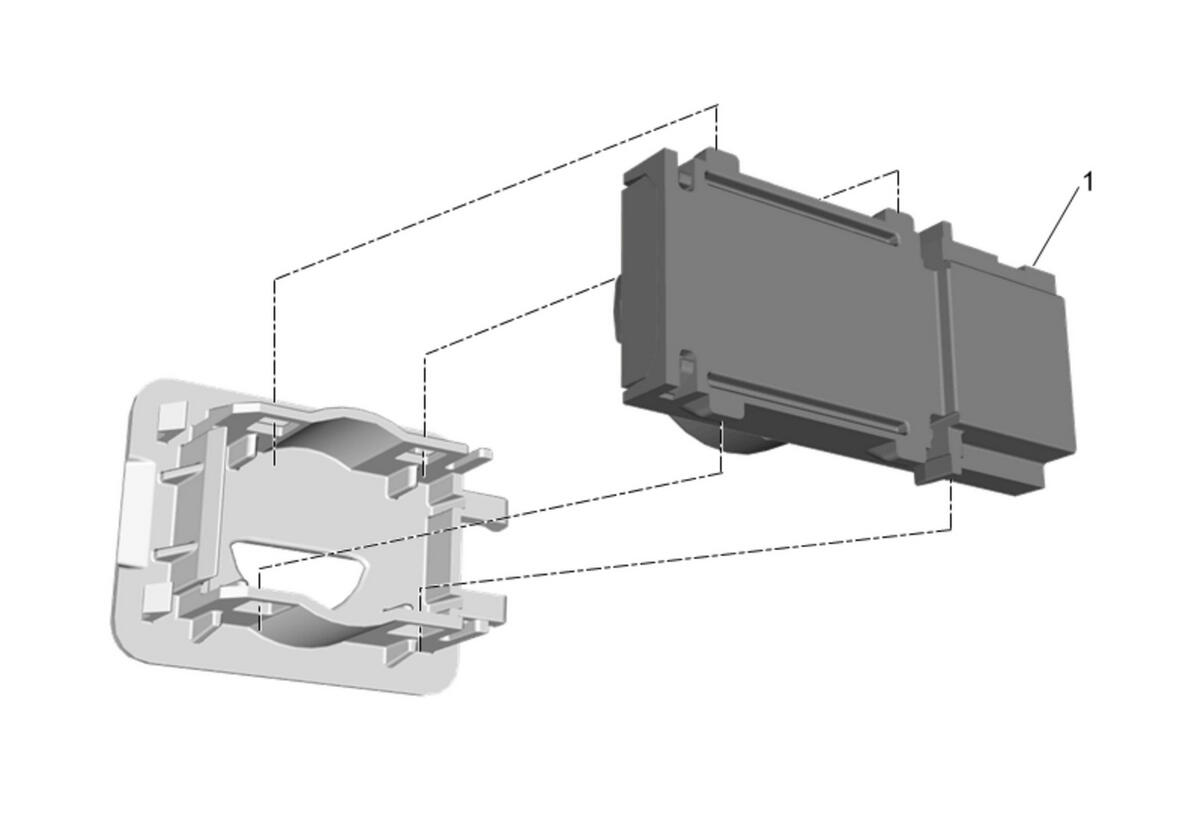

Fig 1: Front Floor Console Compartment Lamp
GM4666352Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Interior Lamp Bezel Replacement
1 Front Floor Console Compartment Lamp
Procedure
Release the retaining tabs.
