Cargo Center Courtesy Lamp Replacement

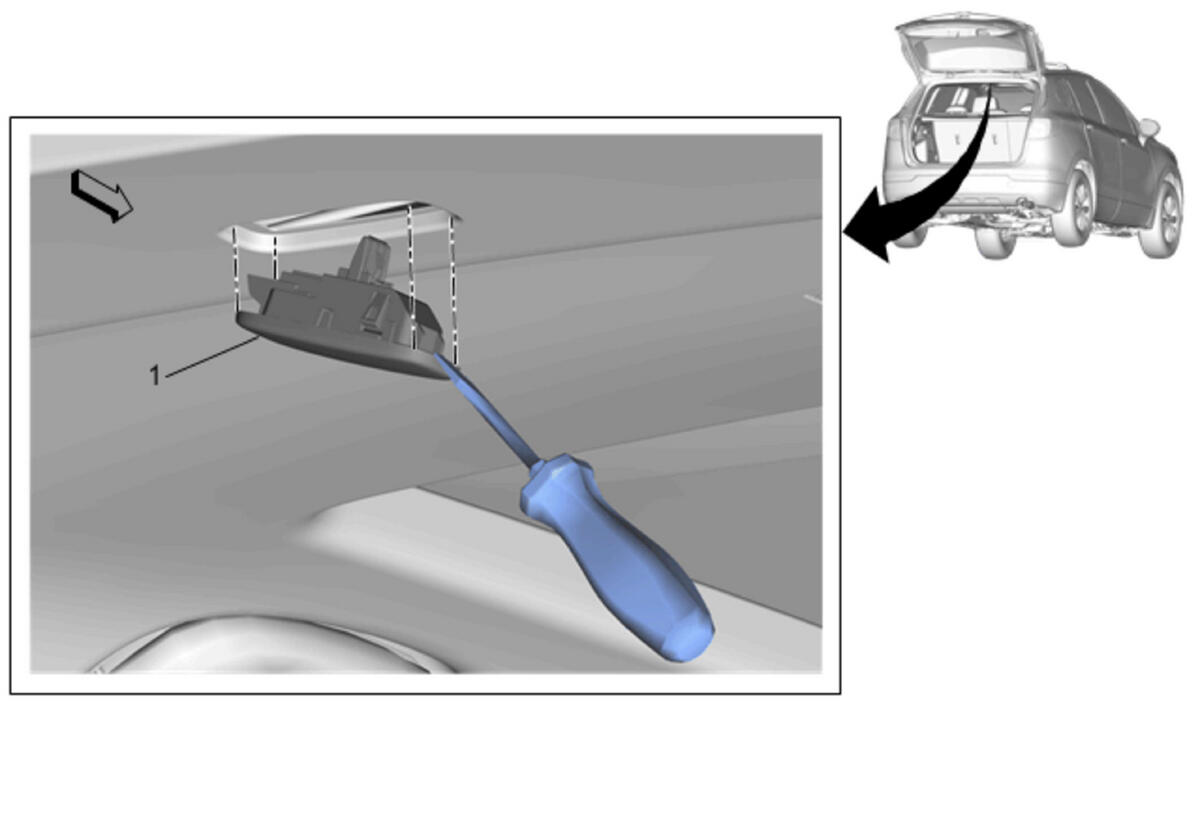

Fig 1: Cargo Center Courtesy Lamp
GM3822117Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the liftgate.
1 Cargo Center Courtesy Lamp

Procedure

  1. Use an appropriate tool to release the lamp from the headlining trim panel.
  2. Disconnect the electrical connector.
