Backup Bulb Replacement (Chevrolet)

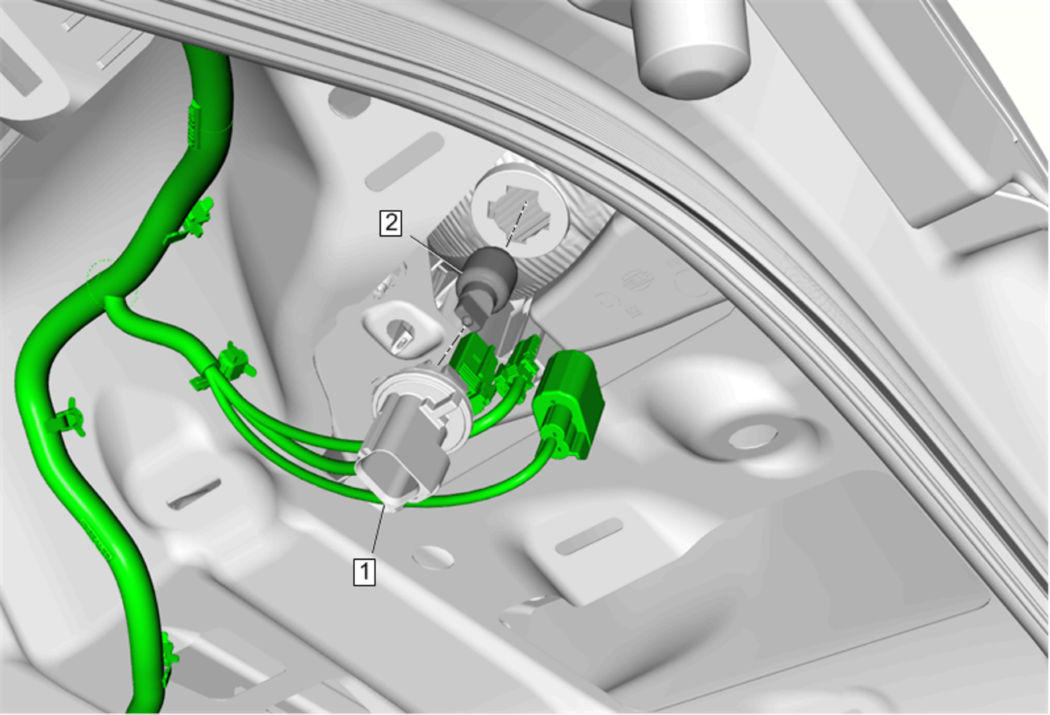

Fig 1: Backup Bulb (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement
1	Backup Lamp Bulb Socket Procedure Rotate the bulb socket a quarter turn counterclockwise and remove.
2	Backup Bulb Procedure Pull the bulb straight from the lamp socket.
