Front Parking Assist Alarm Sensor Replacement (Equinox)

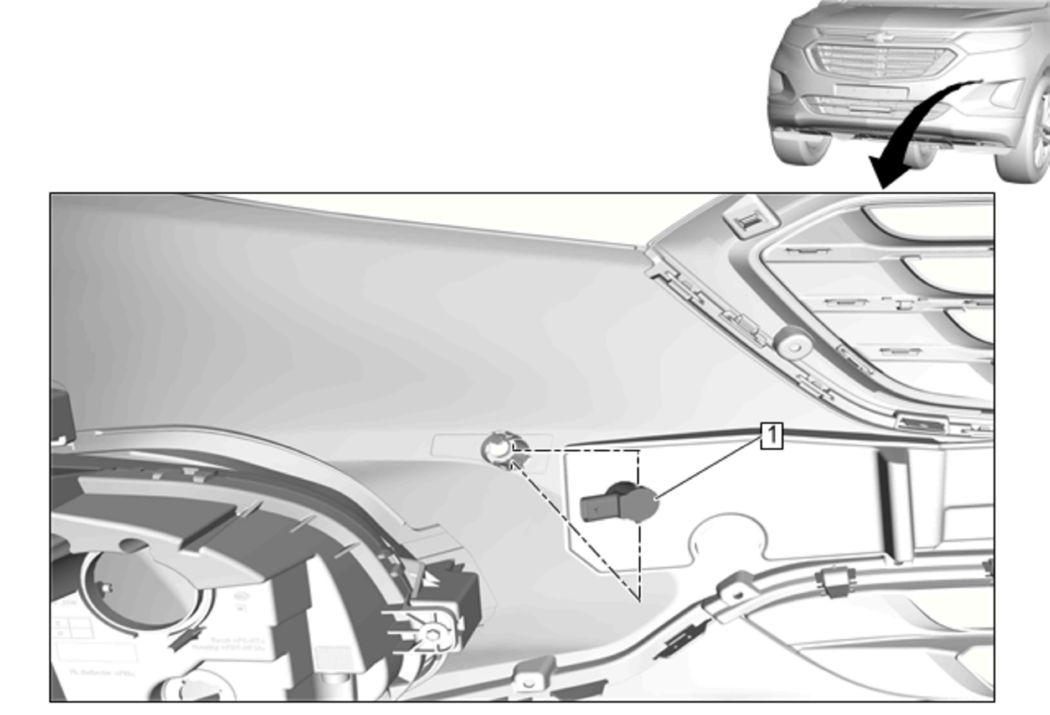

Fig 1: Front Parking Assist Alarm Sensor (Equinox)

GM4583868

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Replacement (Equinox)

1

Front Parking Assist Alarm Sensor

Procedure

Disconnect the electrical connector.
Release the locking tab from the front parking assist alarm sensor bracket.
When the replacement is completed, use a scan tool to perform the appropriate reset functions. Refer to Parking Assist Sensor Learn Calibration
