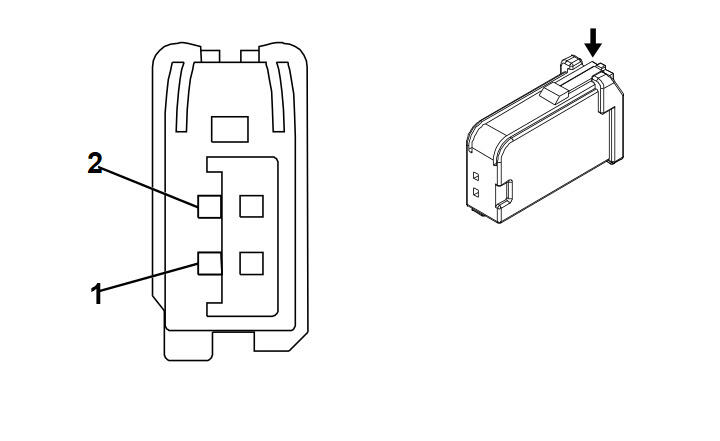

P19J Speaker - Left Instrument Panel (UZ6)
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13585901
- Service Connector: 13585901
- Description: 2-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BN/BU |
118 |
Left Front Speaker Signal (-) 1 |
I |
- |
| 2 |
0.75 |
BU |
201 |
Left Front Speaker Control (+) 1 |
I |
- |
