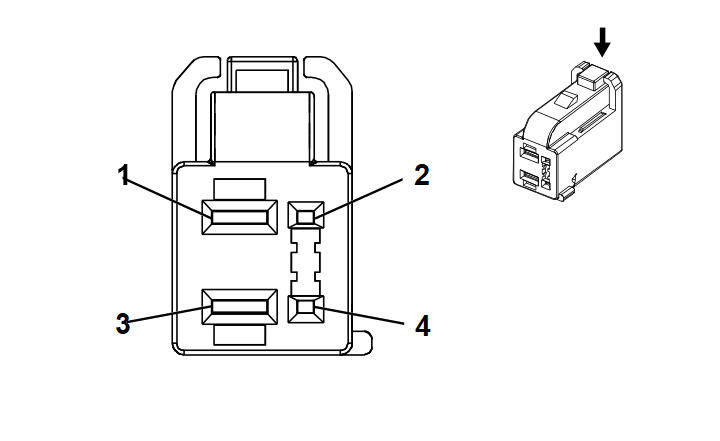

M55P Seat Rear Vertical Motor - Passenger (ADT/AG2)
|
|
Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 2272784-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 0.64, 2.8 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
BU/WH |
289 |
Passenger Power Seat Rear Vertical Motor Down Control |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
1.5 |
GN/WH |
288 |
Passenger Power Seat Rear Vertical Motor Up Control |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
