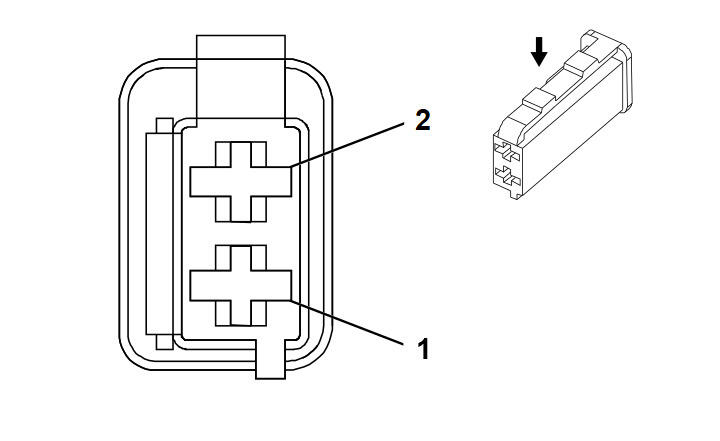

E1M Accent Lamp - Passenger Door Handle
|
|
Connector Part Information
- Harness Type: Passenger Door Trim Panel
- OEM Connector: 19179871
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.6 Timer Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH/YE |
7557 |
LED Ambient Lighting Control 1 |
I |
- |
| 2 |
0.35 |
BK |
2050 |
Ground |
I |
- |
