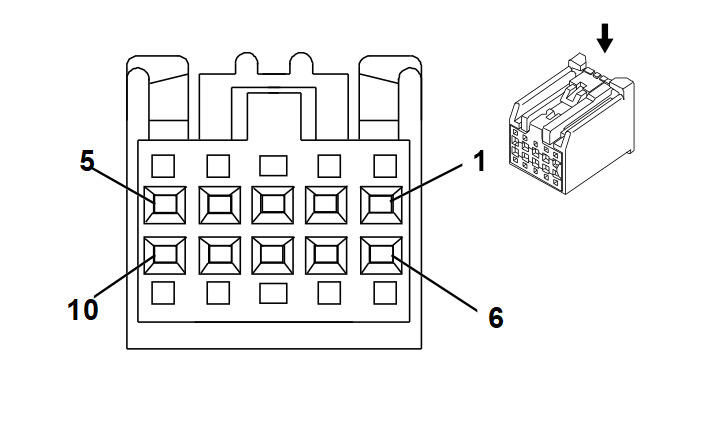

B80 Park Brake Switch (EPH)
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13577390
- Service Connector: 13577390
- Description: 10-Way F 0.64 Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575742 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.13 |
YE |
1492 |
Park Brake Switch Supply Voltage |
I |
EPH |
| 2 |
0.13 |
GY/RD |
7684 |
Park Brake Apply Switch Voltage Reference |
I |
EPH |
| 3 |
0.13 |
BN |
6107 |
Park Brake Apply Switch Signal |
I |
EPH+J71 |
| 4 |
0.13 |
BU/BK |
6108 |
Park Brake Release Switch Signal |
I |
EPH |
| 5 |
0.13 |
YE/RD |
7683 |
Park Brake Release Switch Voltage Reference |
I |
EPH |
| 6 |
0.13 |
BU/VT |
1134 |
Park Brake Switch Signal |
I |
EPH |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
EPH |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
BK |
2250 |
Ground |
I |
EPH |
