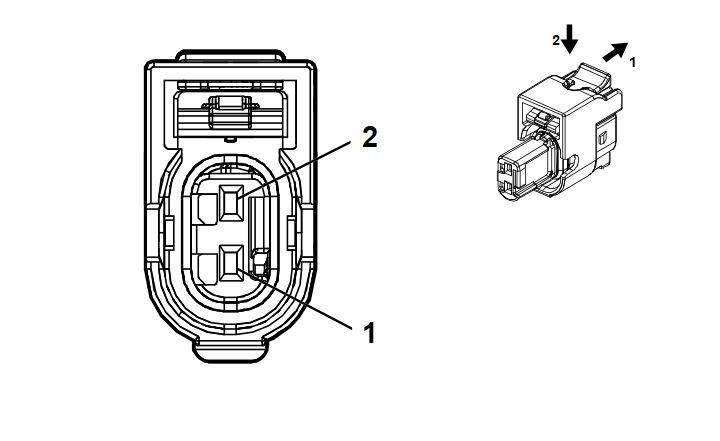

B280 Automatic Transmission Accumulator Solenoid Valve (KL9+M3D/M3H/M3U)
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 4-2098641-1
- Service Connector: 19355451
- Description: 2-Way F 1.2 MCP Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/GY |
6387 |
Transmission High Side Driver 1 Signal Driver |
I |
- |
| 2 |
0.5 |
WH/GY |
4578 |
Surge Accumulator Solenoid Low Side Control |
I |
- |
