A24LR Door Handle Assembly - Left Rear Exterior
|
|

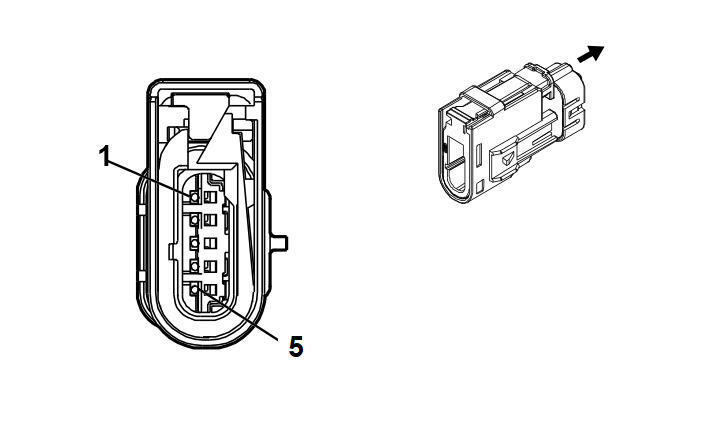

Connector Part Information
- Harness Type: Left Rear Door
- OEM Connector: 13519367
- Service Connector: Service by Harness - See Part Catalog
- Description: 5-Way M 1.2 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BN/YE |
6157 |
Left Rear Door Handle Switch Signal |
I |
- |
| 2 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
BK |
1550 |
Ground |
I |
- |
