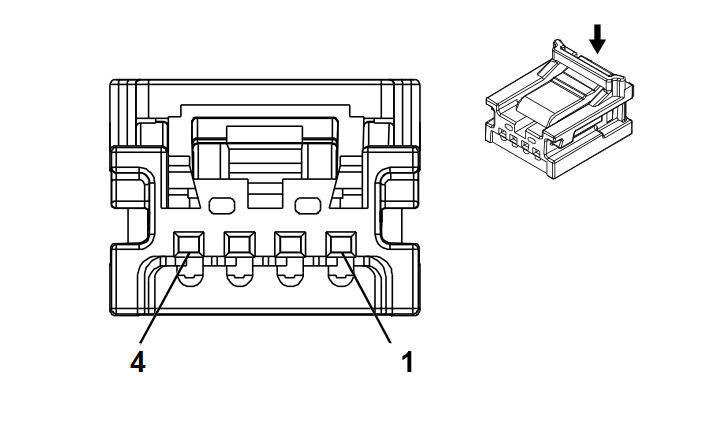

A11 Radio X6 (IOR+UE1)
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 34791-5140
- Service Connector: 19354840
- Description: 4-Way F Mini 50 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
EL-35616-58 (BK) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
GY/WH |
7211 |
Ethernet Bus 4 (+) |
I |
IOR+UE1 |
| 3 |
0.35 |
GY |
7210 |
Ethernet Bus 4 (-) |
I |
IOR+UE1 |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
