Rear Luggage Compartment/Inside Of The Liftgate

Rear Luggage Compartment/Inside Of The Liftgate

Items
1. B71R Liftgate Object Sensor - Right (TB5/TC2) B71R Liftgate Object Sensor - Right (TB5/TC2)
2. E18 Rear Defogger Grid E18 Rear Defogger Grid X1E18 Rear Defogger Grid X2
3. B71L Liftgate Object Sensor - Left (TB5/TC2) B71L Liftgate Object Sensor - Left (TB5/TC2)
4. M30 Liftgate Latch (TB4) M30 Liftgate Latch (TB4)
5. M45 Rear Wiper Motor M45 Rear Wiper Motor
6. E7R License Plate Lamp - Right E7R License Plate Lamp - Right (X88)E7R License Plate Lamp - Right (Z88)

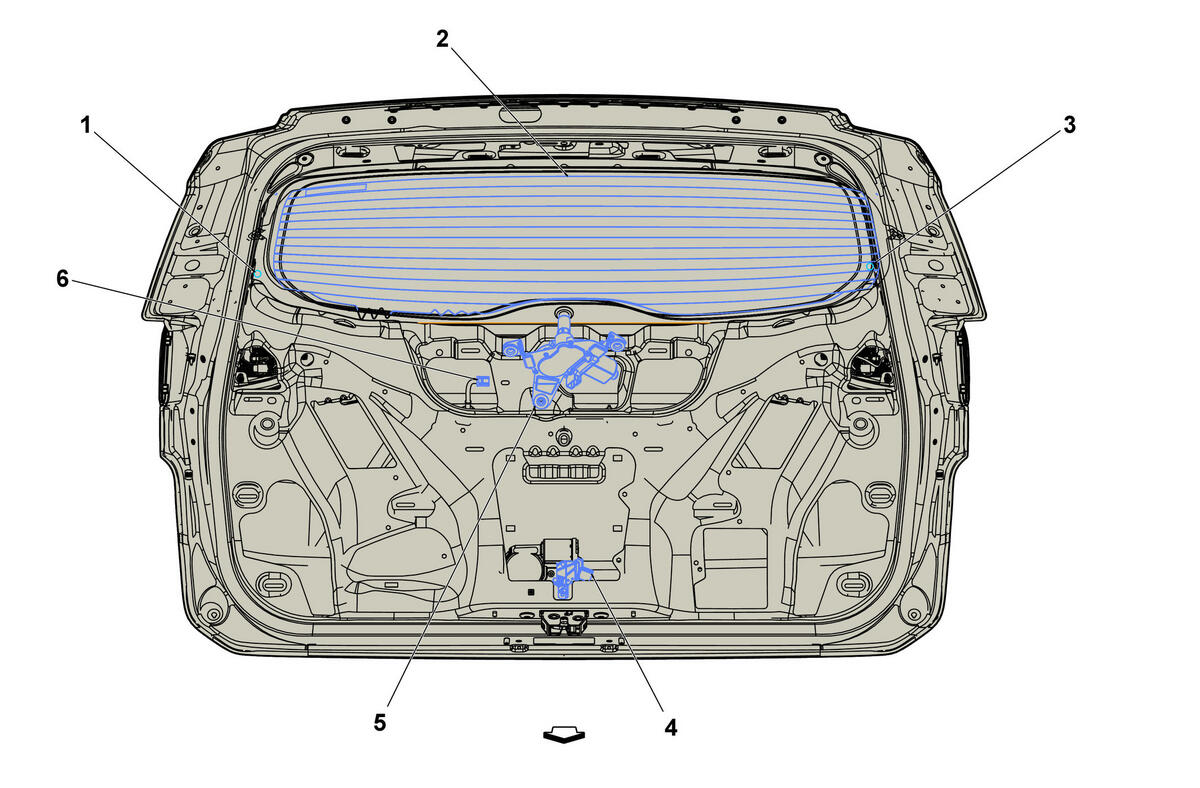

Fig 1: Rear Luggage Compartment/Inside Of The Liftgate
GM4585907Courtesy of GENERAL MOTORS COMPANY
