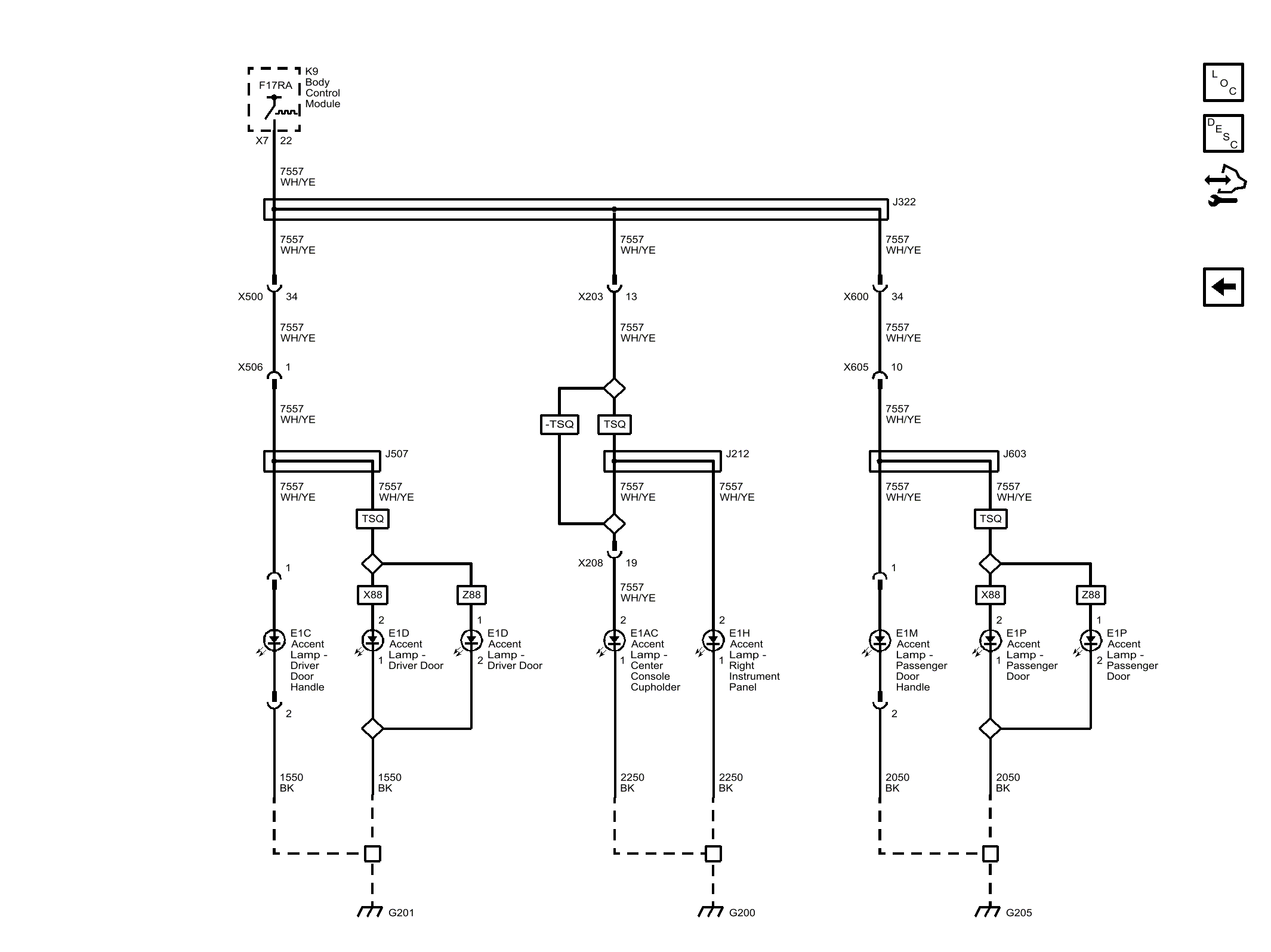

Home >> Chevrolet >> 2018 >> Equinox L >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Exterior Lights >> Lighting System - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Interior Lights Wiring Schematics >> Accent and Flood Lamps
