Controls, Instrument Panel and Floor Console Lamps

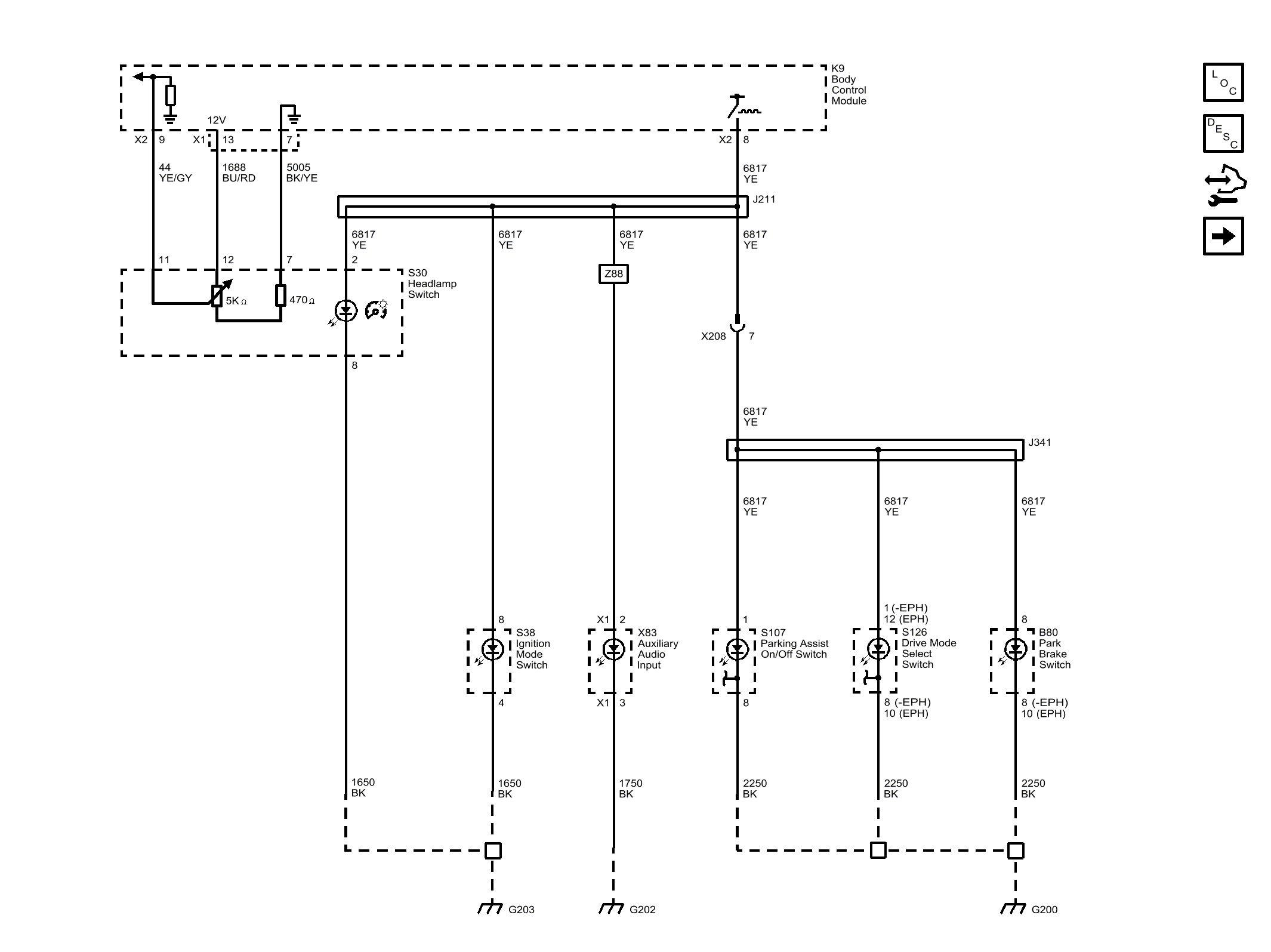

Fig 1: Controls, Instrument Panel and Floor Console Lamps

GM4597146

Courtesy of GENERAL MOTORS COMPANY
