Daytime Running Lamps (T4F or T4L with Z88)

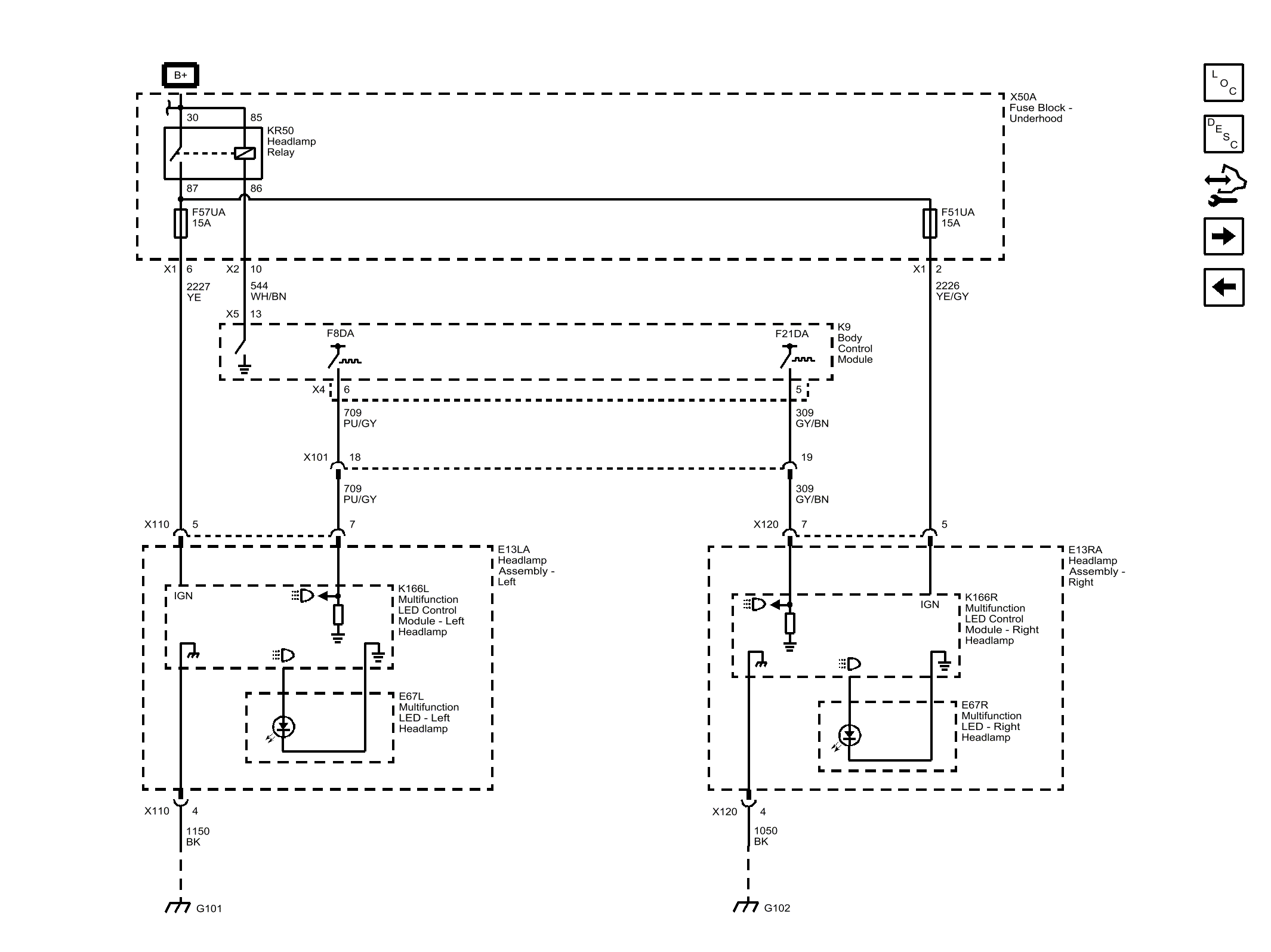

Fig 1: Daytime Running Lamps (T4F or T4L with Z88)

GM4597111

Courtesy of GENERAL MOTORS COMPANY
