Adaptive Forward Lighting - Power, Ground, Serial Data and Suspension Sensors (TR7)

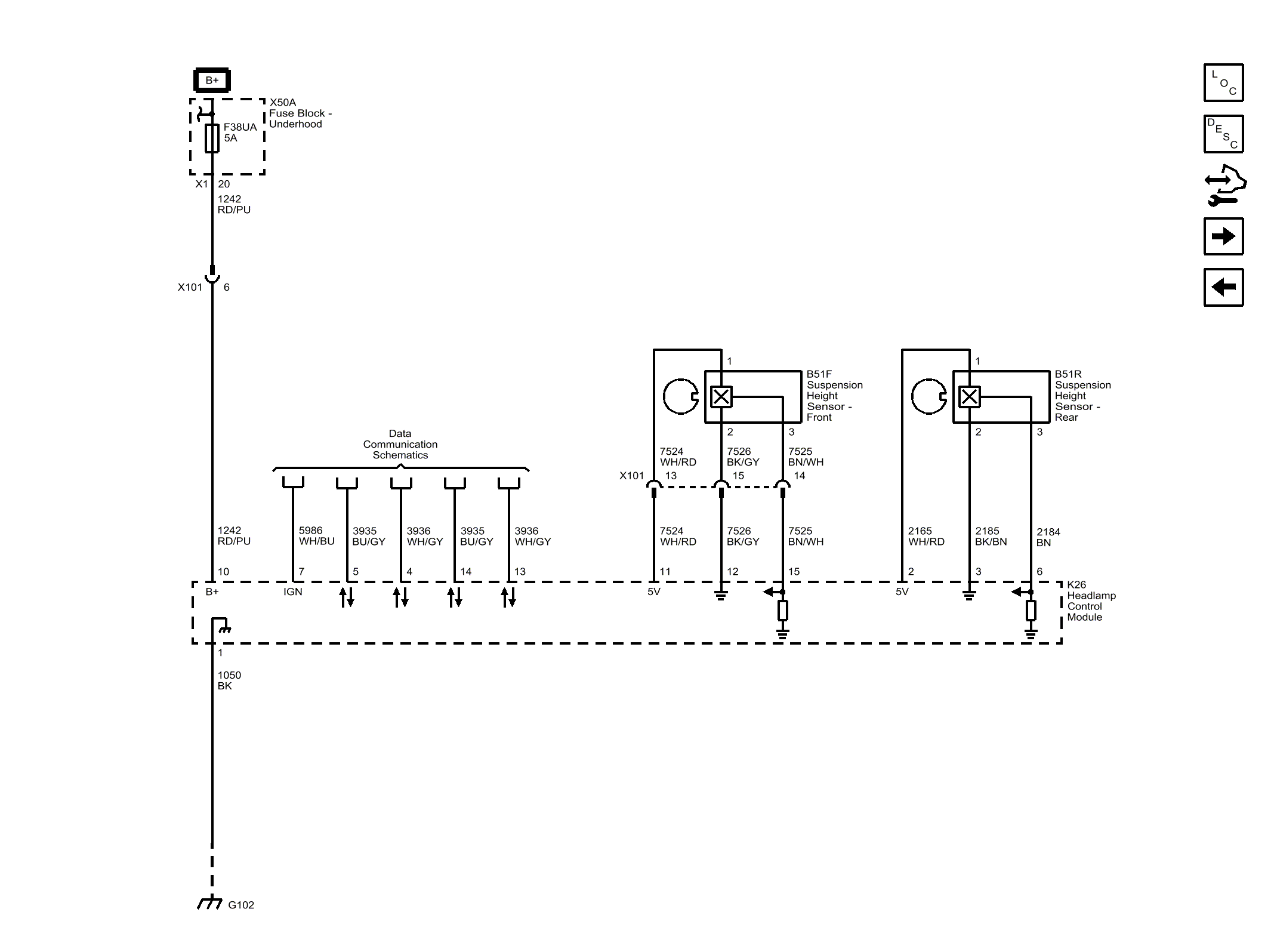

Fig 1: Adaptive Forward Lighting - Power, Ground, Serial Data and Suspension Sensors (TR7)
GM4621088Courtesy of GENERAL MOTORS COMPANY
