Turn Signal Bulb Replacement - Left Side (Chevrolet)

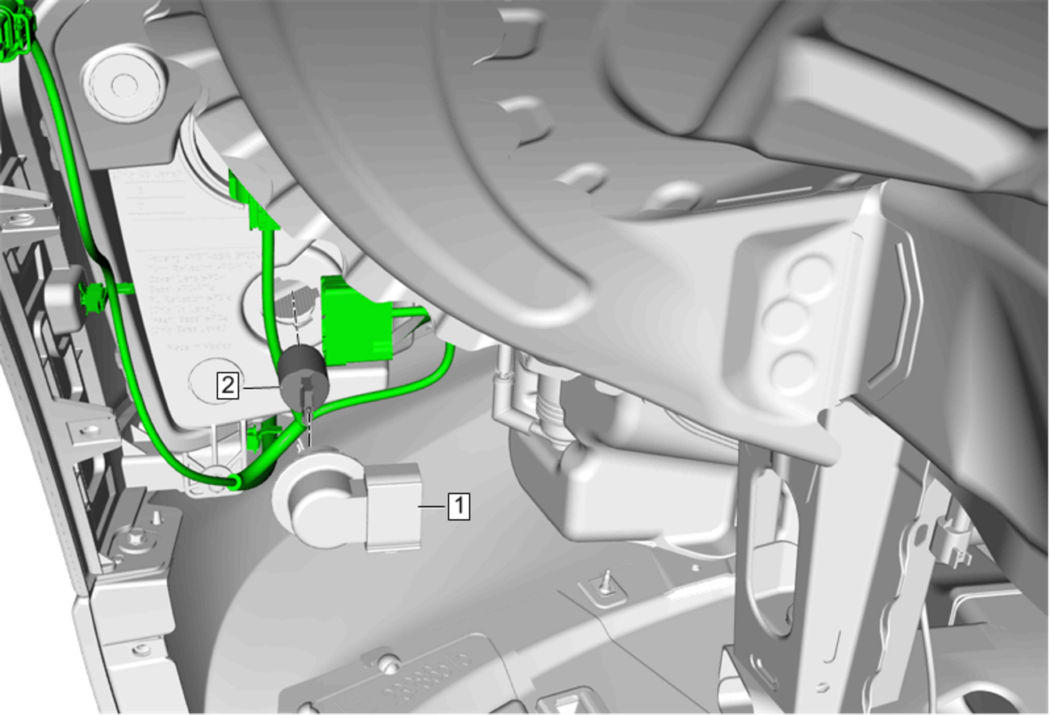

Fig 1: Turn Signal Bulb - Left Side (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Turn Signal Lamp Bulb Socket Procedure Open fog lamp access door. Disconnect the electrical connector. Disconnect and reposition harness as necessary. Rotate the bulb socket a quarter turn counterclockwise and remove.
2	Turn Signal Bulb - Left Side WARNING: Refer to Halogen Bulb Warning . Procedure Pull the bulb straight from the lamp socket.

Callout

Component Name

Front Turn Signal Lamp Bulb Socket

Procedure

Turn Signal Bulb - Left Side

WARNING:

Procedure
Pull the bulb straight from the lamp socket.
