Stop Bulb Replacement (Chevrolet Without UGE)

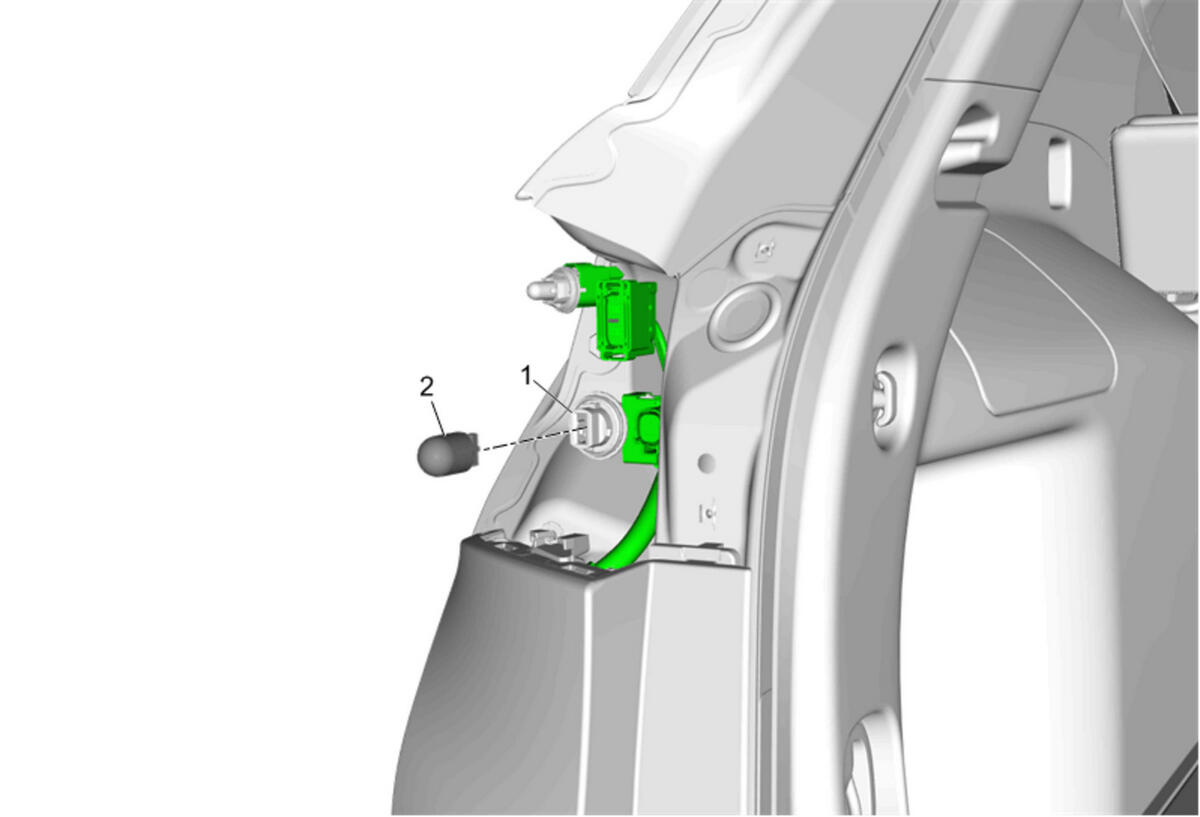

Fig 1: Stop Bulb (Chevrolet Without UGE)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Reposition and support the rear body structure stop lamp. Refer to Rear Body Structure Stop Lamp Replacement (Chevrolet Without UGE)
1	Stop Lamp Bulb Socket Procedure  Rotate the bulb socket a quarter turn counterclockwise and remove.
2	Stop Bulb Procedure  Pull the bulb straight from the lamp socket.
