Side Marker Bulb Replacement (Without UGE)

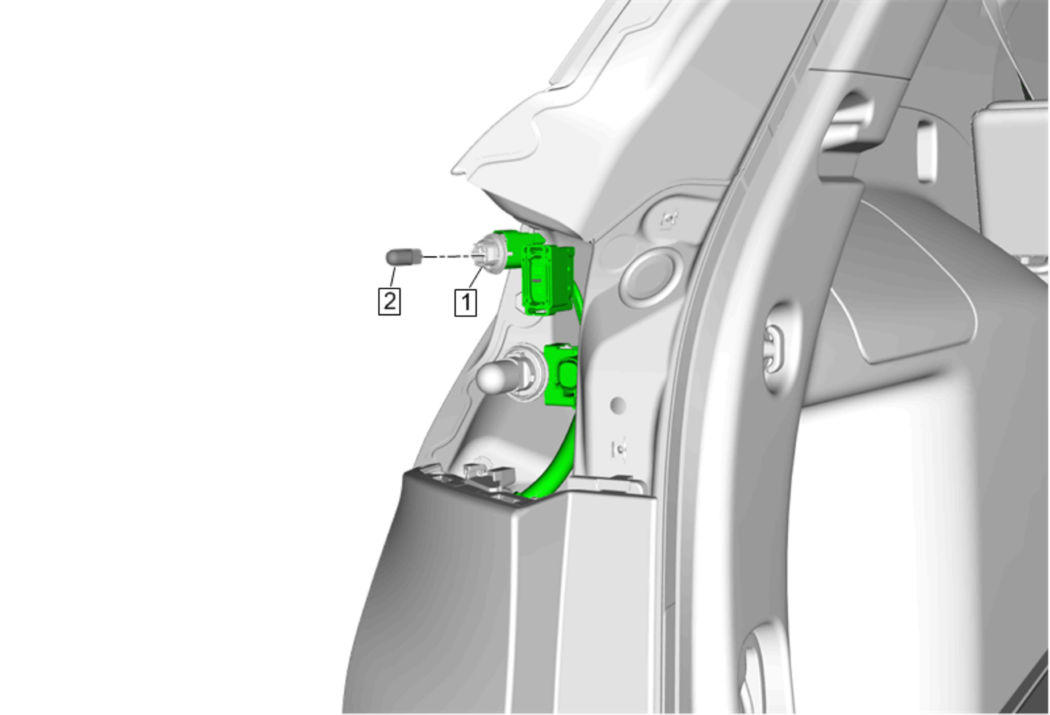

Fig 1: Side Marker Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Reposition and support the rear body structure stop lamp. Rear Body Structure Stop Lamp Replacement (Chevrolet Without UGE)
1	Side Marker Lamp Bulb Socket Procedure  Rotate the bulb socket a quarter turn counterclockwise and remove.
2	Side Marker Bulb Procedure  Pull the bulb straight from the lamp socket.
