Rear License Plate Lamp Replacement (Chevrolet)

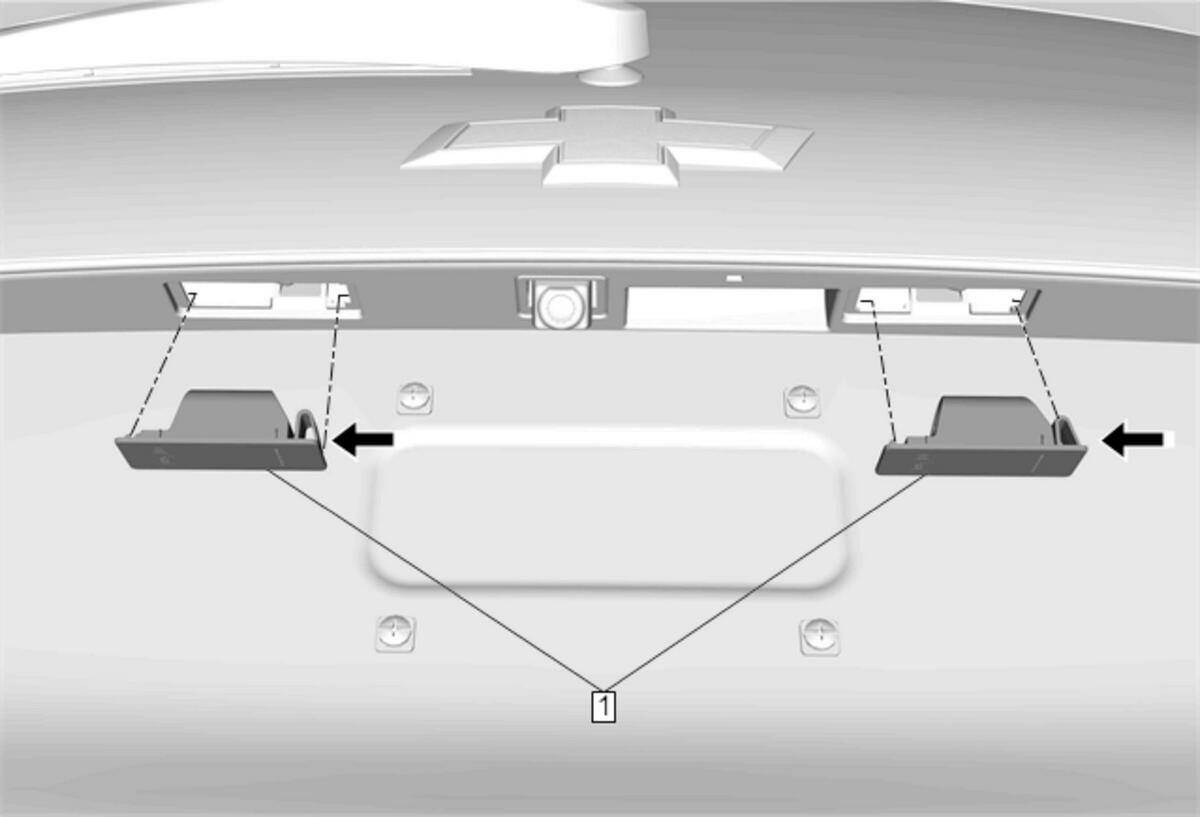

Fig 1: Rear License Plate Lamp (Chevrolet)
GM4533847Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear License Plate Lamp

Procedure

  1. Using a flat-bladed tool, depress the tab and pull downward to remove the lamp.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
