Removal Procedure

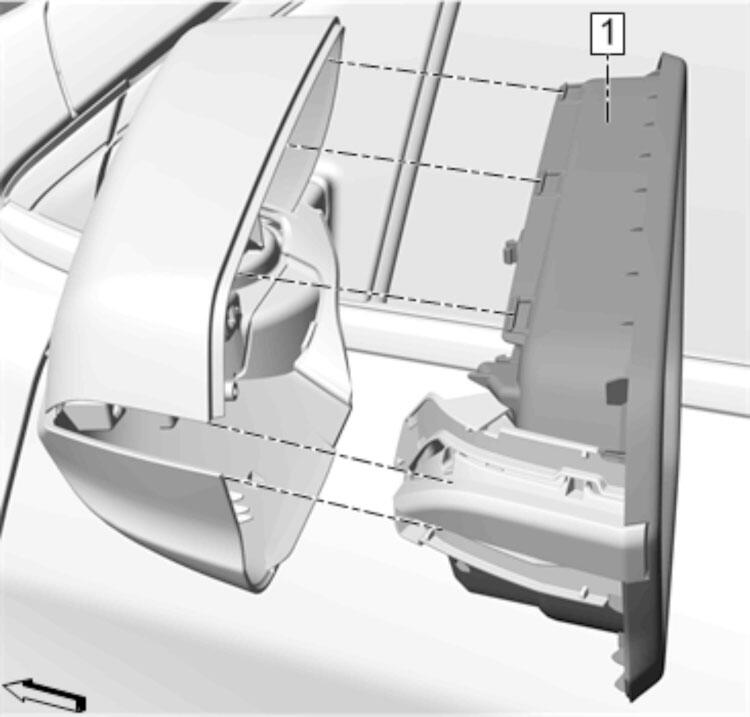

    Fig 1: Outside Rearview Mirror Housing Bezel
    GM4586015Courtesy of GENERAL MOTORS COMPANY
  1. Remove Outside Rearview Mirror Housing Bezel (1) - Outside Rearview Mirror Housing Bezel Replacement

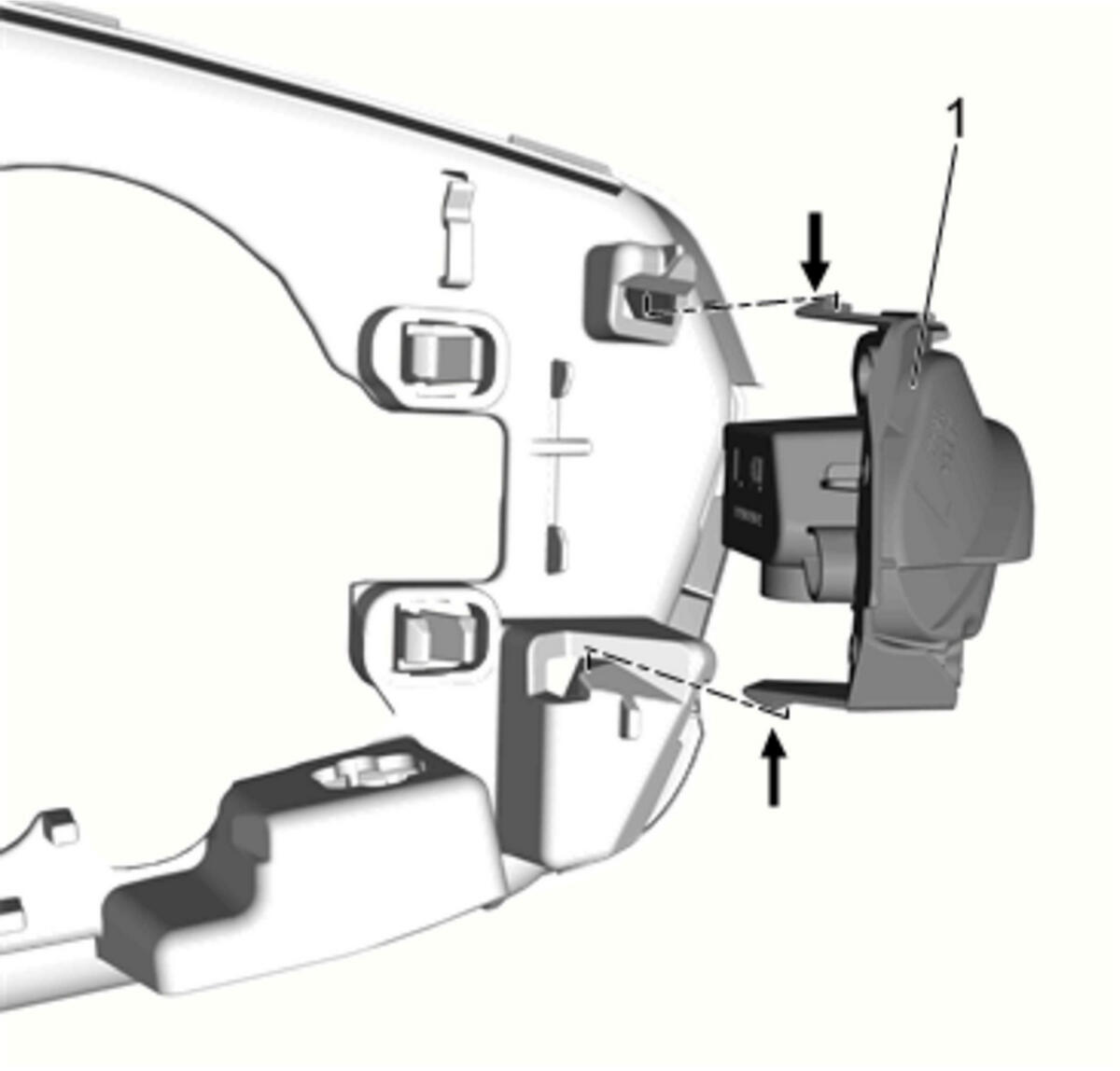

    2. Fig 2: Outside Rearview Mirror Turn Signal Lamp
    GM4586019Courtesy of GENERAL MOTORS COMPANY
  2. Release the tabs and remove the outside rearview mirror turn signal lamp. (1)
