Instrument Panel Light Conductor Lamp Replacement (GMC)

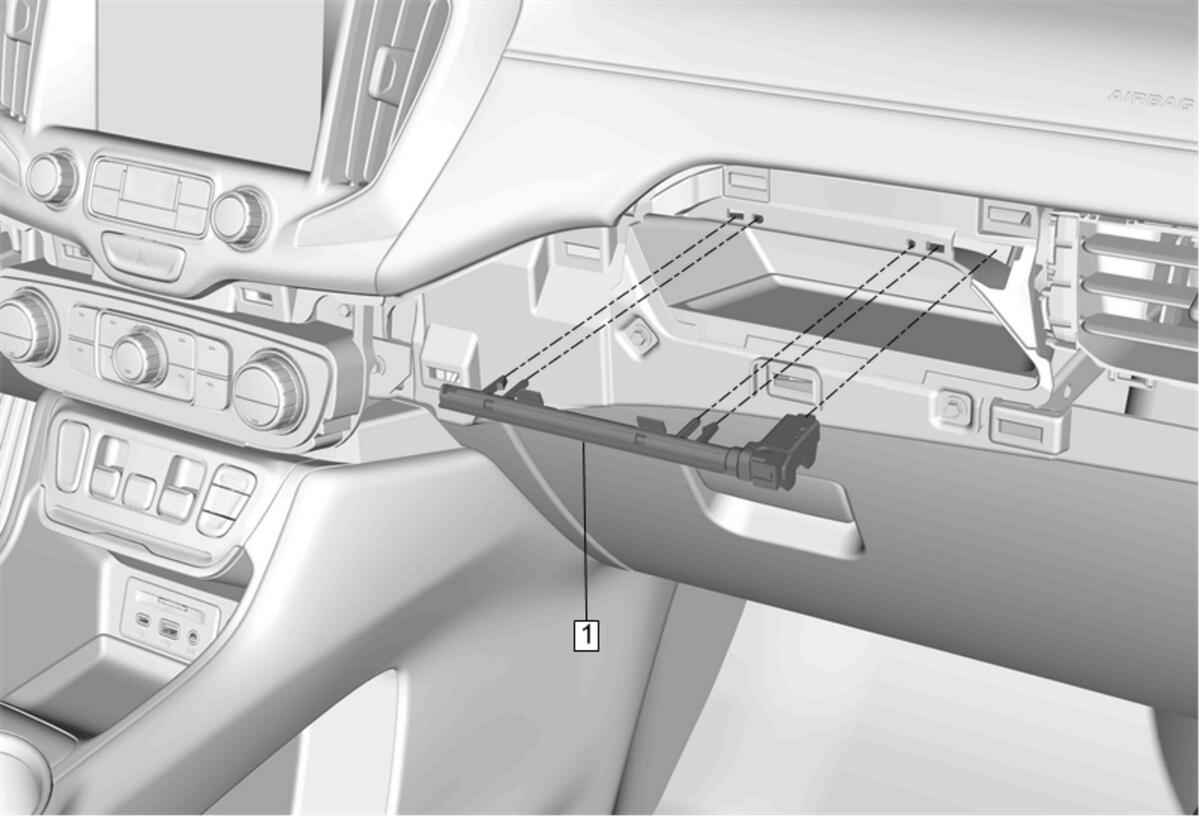

Fig 1: Instrument Panel Light Conductor Lamp
GM4695950Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Trim Pad Replacement - Right Side (Terrain)
1 Instrument Panel Light Conductor Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
