High Mount Stop Lamp Replacement (Chevrolet)

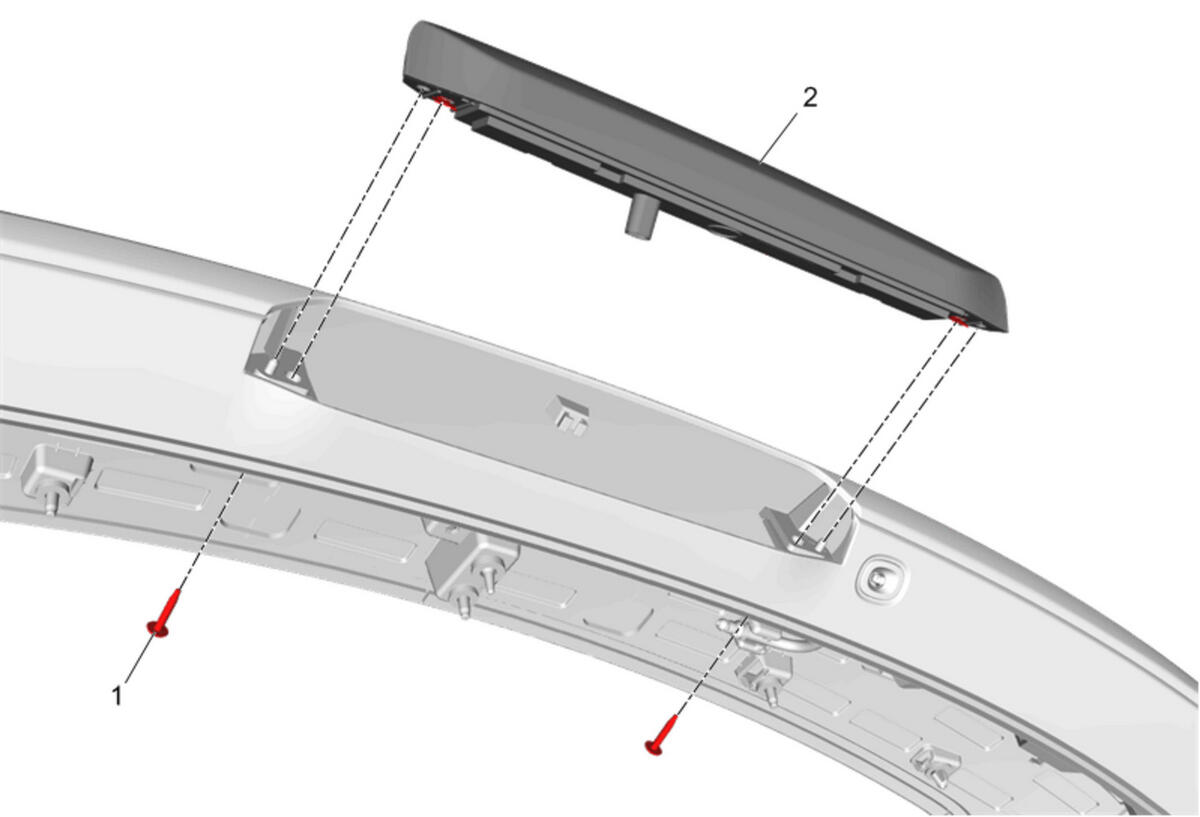

Fig 1: High Mount Stop Lamp (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear End Spoiler Replacement (Equinox)
1	High Mount Stop Lamp Screw [2x] CAUTION: Refer to Fastener Caution . Tighten  1.4 N.m (12 lb in)
2	High Mount Stop Lamp Procedure  Disconnect the electrical connector.
