Hazard Warning Switch Replacement (Equinox)

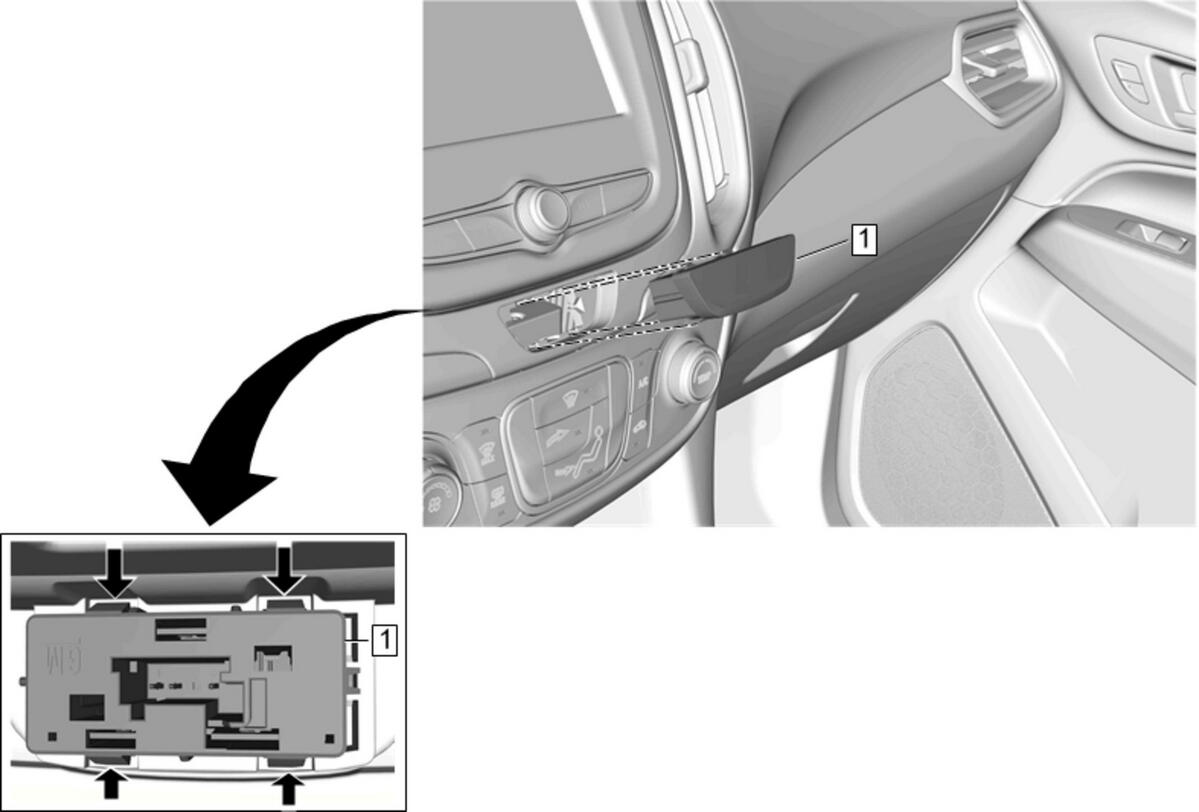

Fig 1: Hazard Warning Switch (Equinox)
GM4584572Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Heater and Air Conditioning User Interface Control Replacement (Equinox)
1 Hazard Warning Switch

Procedure

  1. Disconnect the electrical connector.
  2. Release the tabs and remove the switch.
