Front Side Door Map Pocket Illumination Lamp Replacement

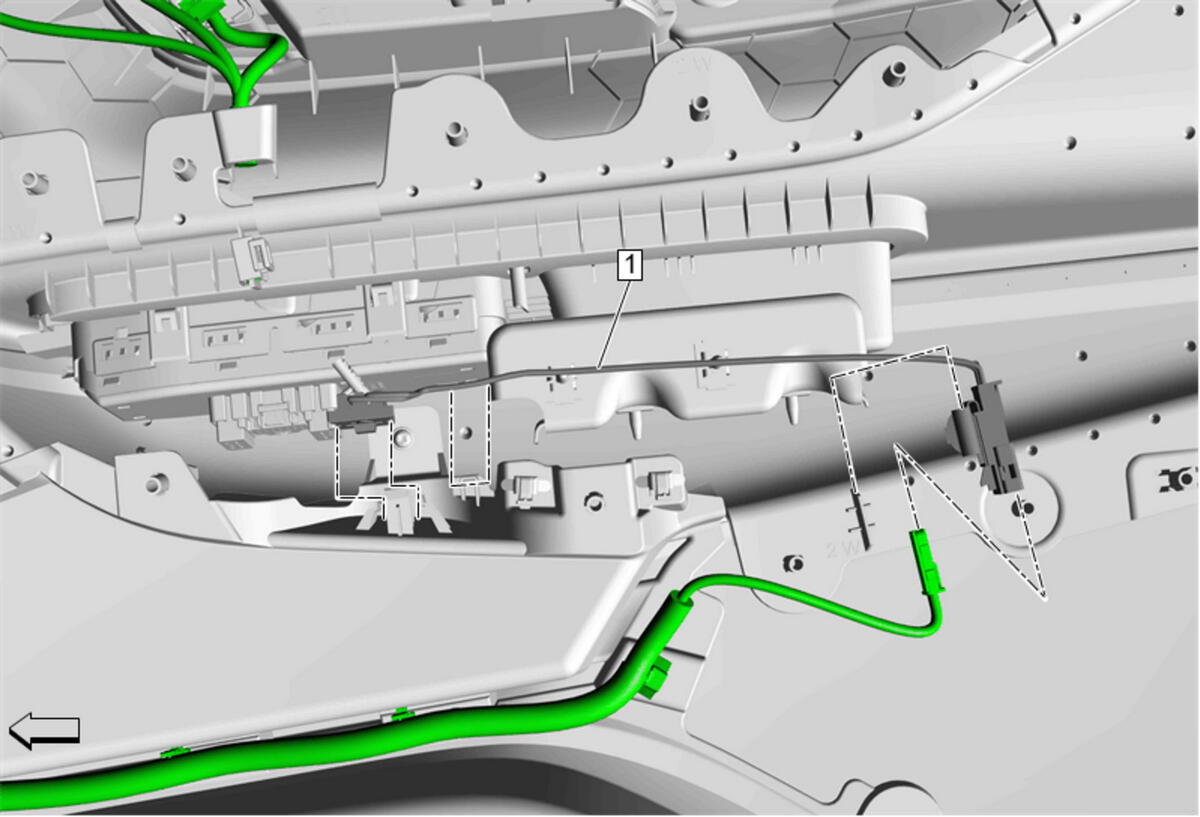

Fig 1: Front Side Door Map Pocket Illumination Lamp
GM4694967Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Trim Replacement (Equinox)Front Side Door Trim Replacement (Terrain)
1 Front Side Door Map Pocket Illumination Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Unsnap the lamp from the trim panel tabs.
