Front Fog Lamp Bulb Replacement (GMC - Right)

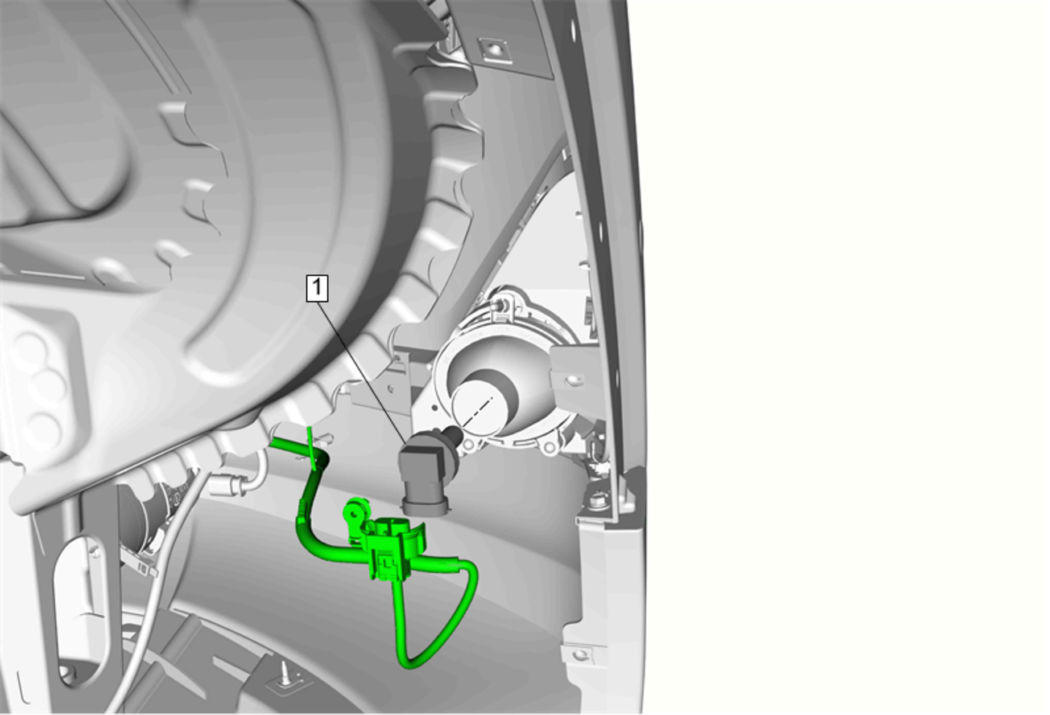

Fig 1: Front Fog Lamp Bulb (GMC - Right)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning . Preliminary Procedure Reposition the forward half of the right front wheelhouse liner away to gain access to the component. Front Wheelhouse Liner Replacement - Right Side (Terrain)
1	Front Fog Lamp Bulb Procedure Disconnect the electrical connector. Rotate the bulb a quarter turn counterclockwise and remove.

Callout

Component Name

WARNING:

Preliminary Procedure Reposition the forward half of the right front wheelhouse liner away to gain access to the component. Front Wheelhouse Liner Replacement - Right Side (Terrain)

Front Fog Lamp Bulb

Procedure
