Front Fog Lamp Bulb Replacement (Chevrolet - Right Side)

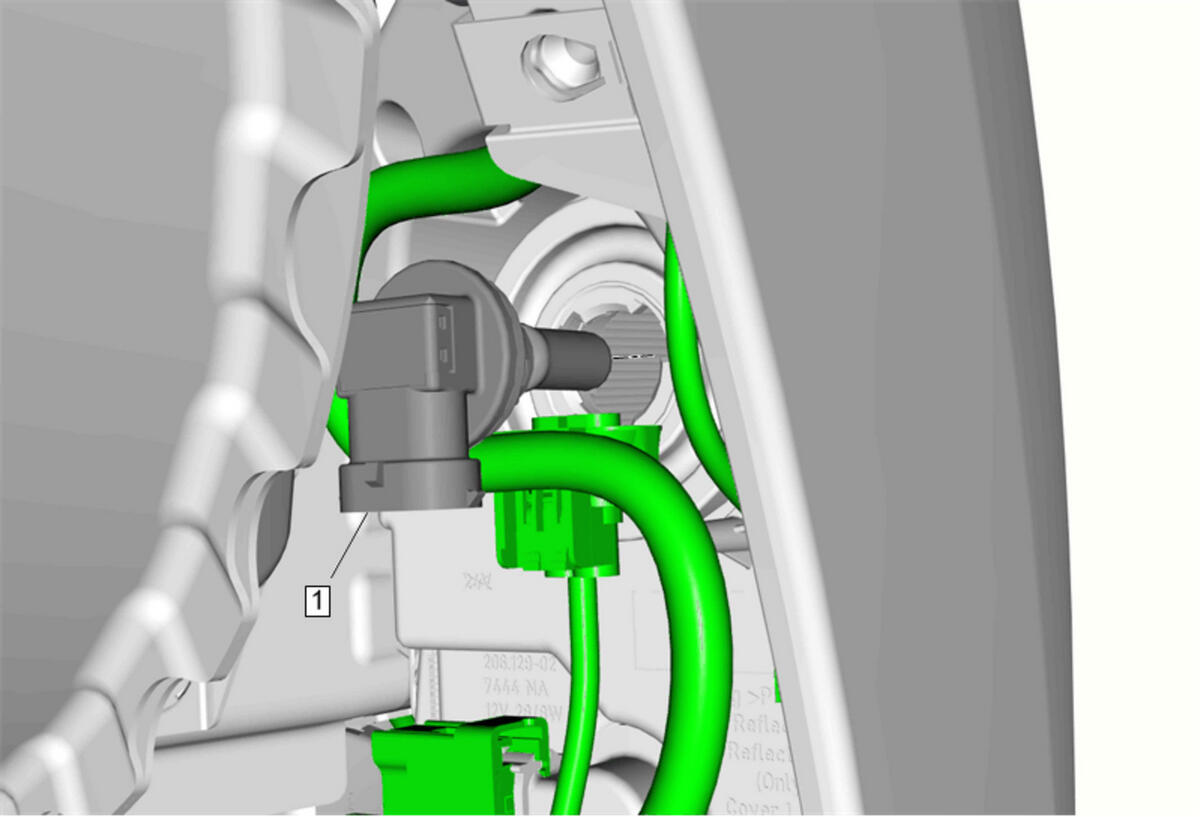

Fig 1: Front Fog Lamp Bulb (Chevrolet - Right Side)
GM4581010Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1
WARNING:

Refer to Halogen Bulb Warning .

Front Fog Lamp Bulb-Right Side

Procedure

  1. Open fog lamp access door.
  2. Disconnect the electrical connector.
  3. Rotate the bulb socket a quarter turn counterclockwise and remove.
