Front Fog Lamp Bulb Replacement (Chevrolet - Left Side)

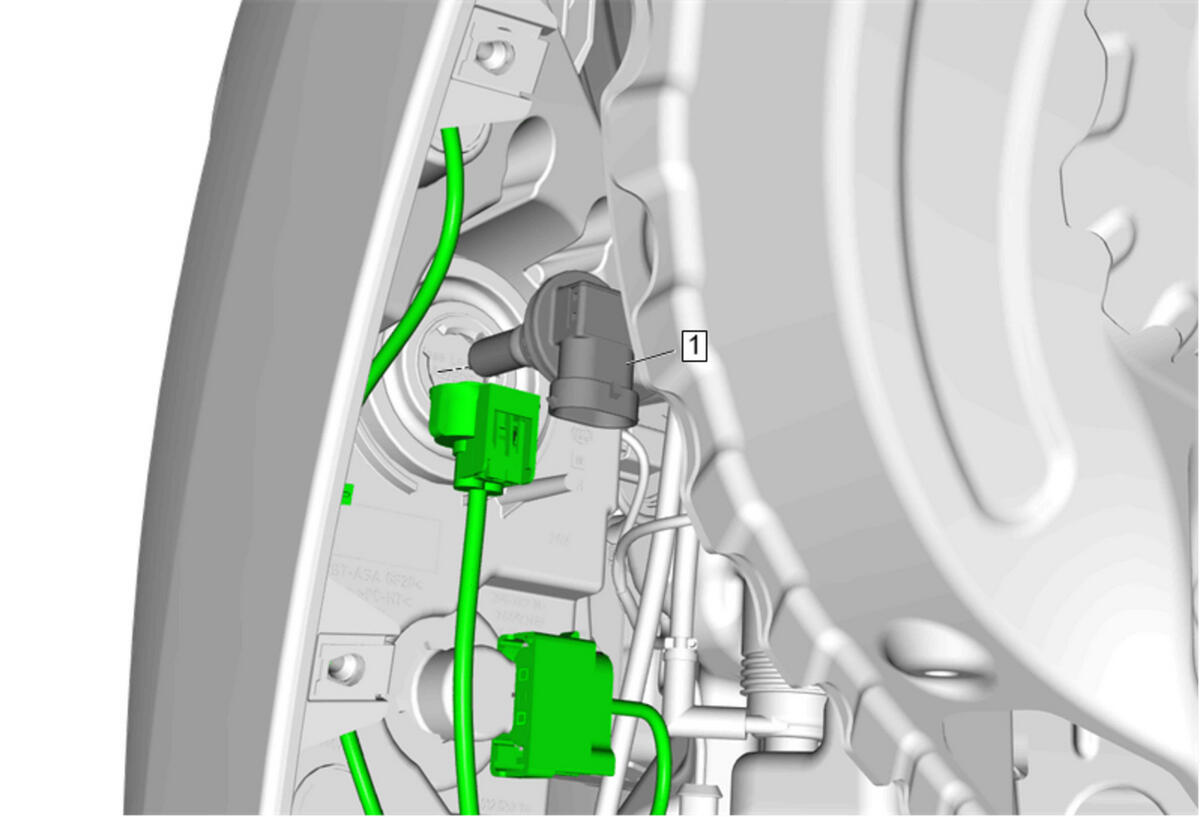

Fig 1: Front Fog Lamp Bulb (Chevrolet - Left Side)
GM4581006Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1
WARNING:

Refer to Halogen Bulb Warning .

Front Fog Lamp Bulb-Left Side

Procedure

  1. Open fog lamp access door.
  2. Disconnect the electrical connector.
  3. Rotate the bulb socket a quarter turn counterclockwise and remove.
