Park Assist - Rear Parking Assist Sensors (UD7)

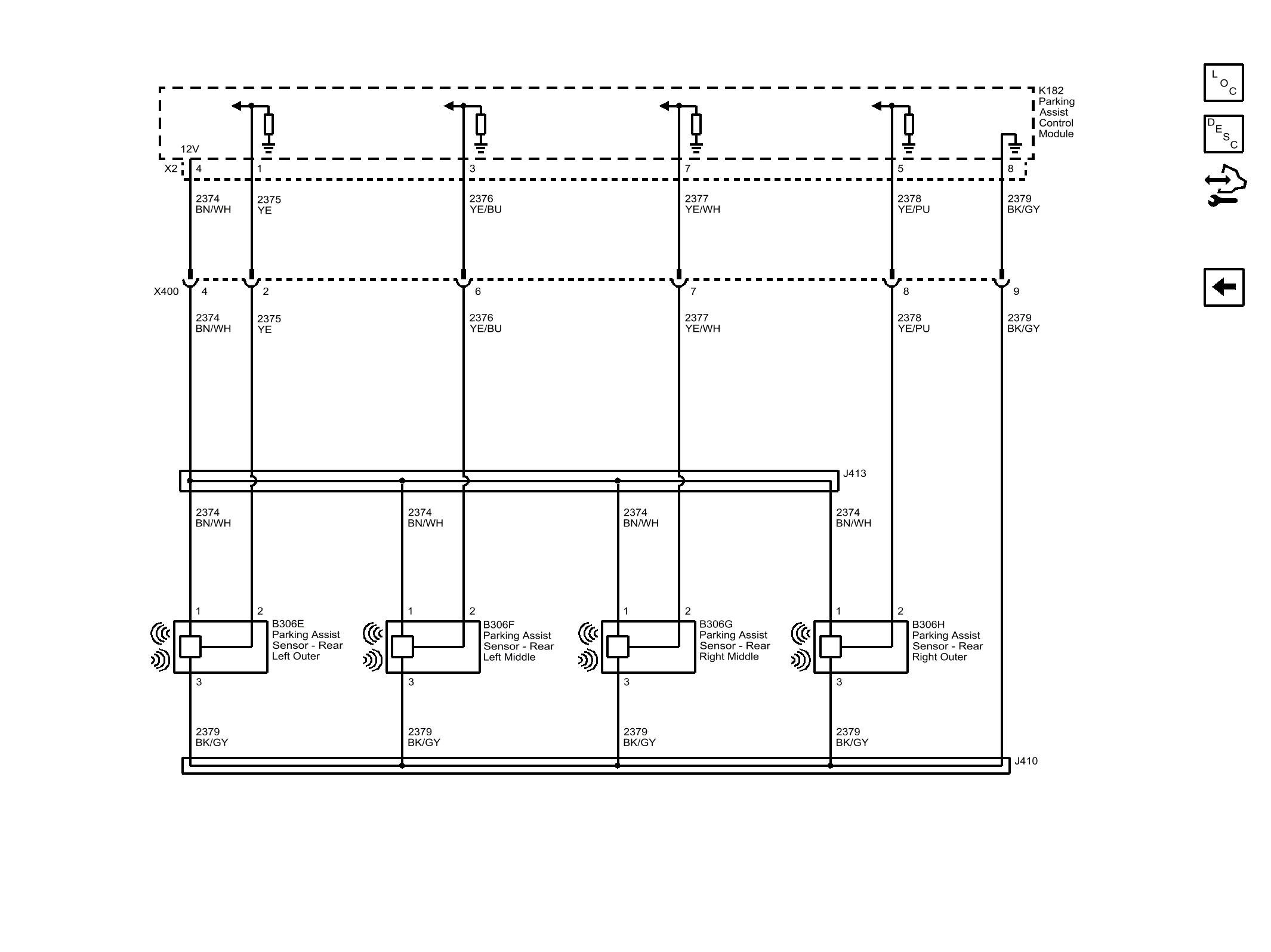

Fig 1: Park Assist - Rear Parking Assist Sensors (UD7)

GM4598375

Courtesy of GENERAL MOTORS COMPANY
