Park Assist - Front and Front Side Parking Assist Sensors (UD5 or UFQ)

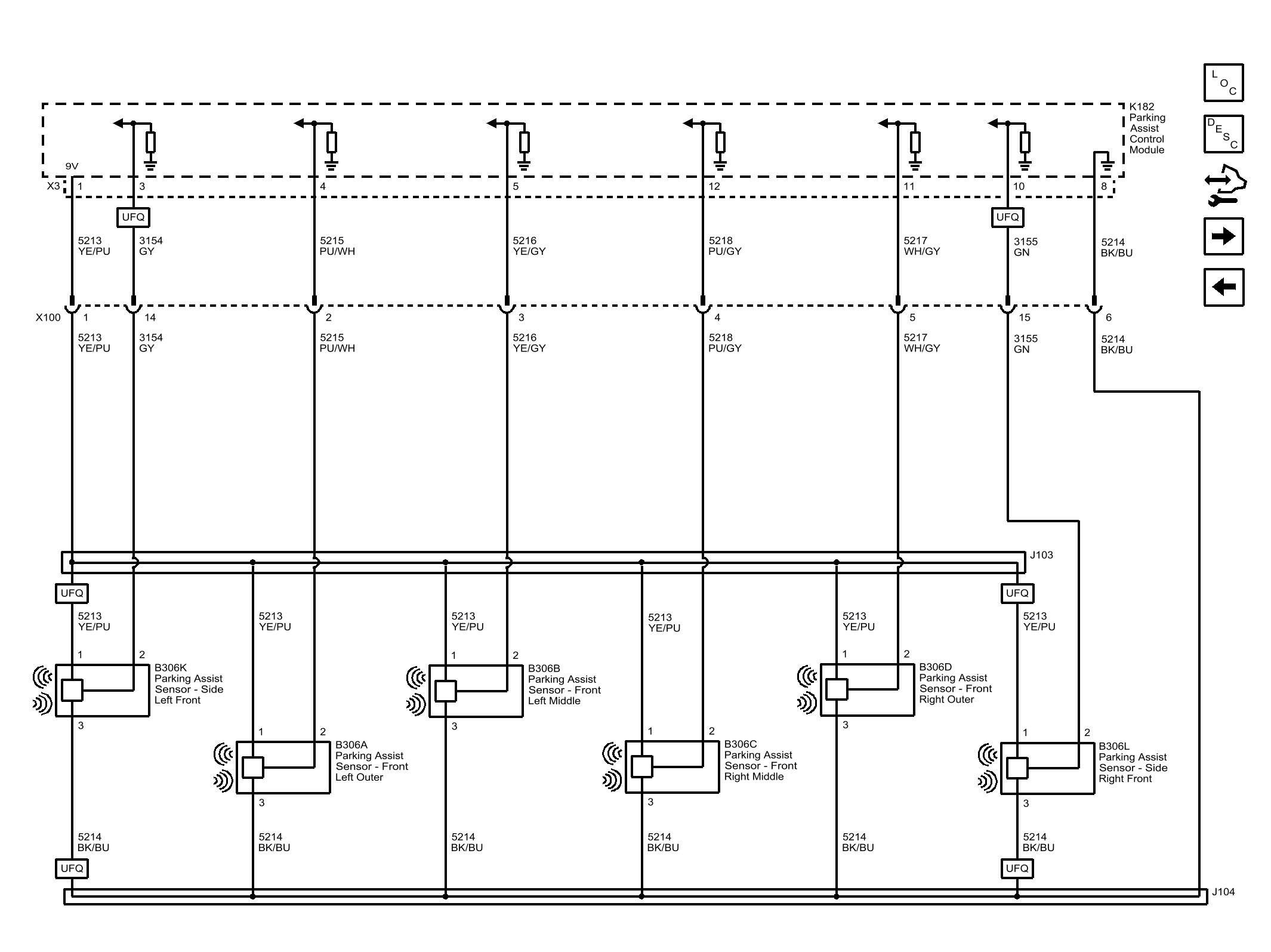

Fig 1: Park Assist - Front and Front Side Parking Assist Sensors (UD5 or UFQ)

GM4598371

Courtesy of GENERAL MOTORS COMPANY
