Powertrain Sensor High Speed GMLAN (LTG/LYX with EPH)

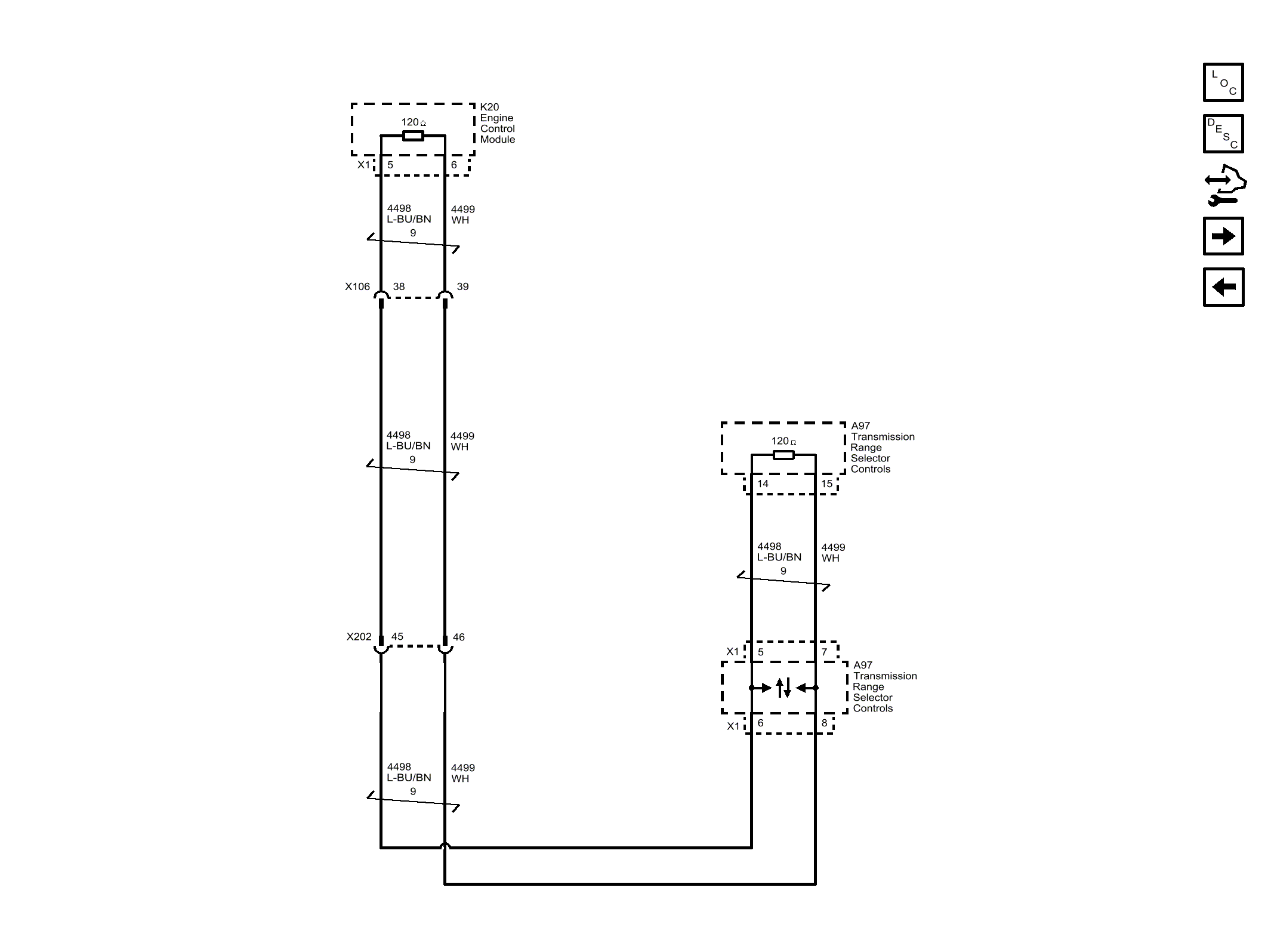

Fig 1: Powertrain Sensor High Speed GMLAN (LTG/LYX with EPH)

GM4976528

Courtesy of GENERAL MOTORS COMPANY
