Powertrain High Speed GMLAN (LTG/LYX/LH7 without EPH)

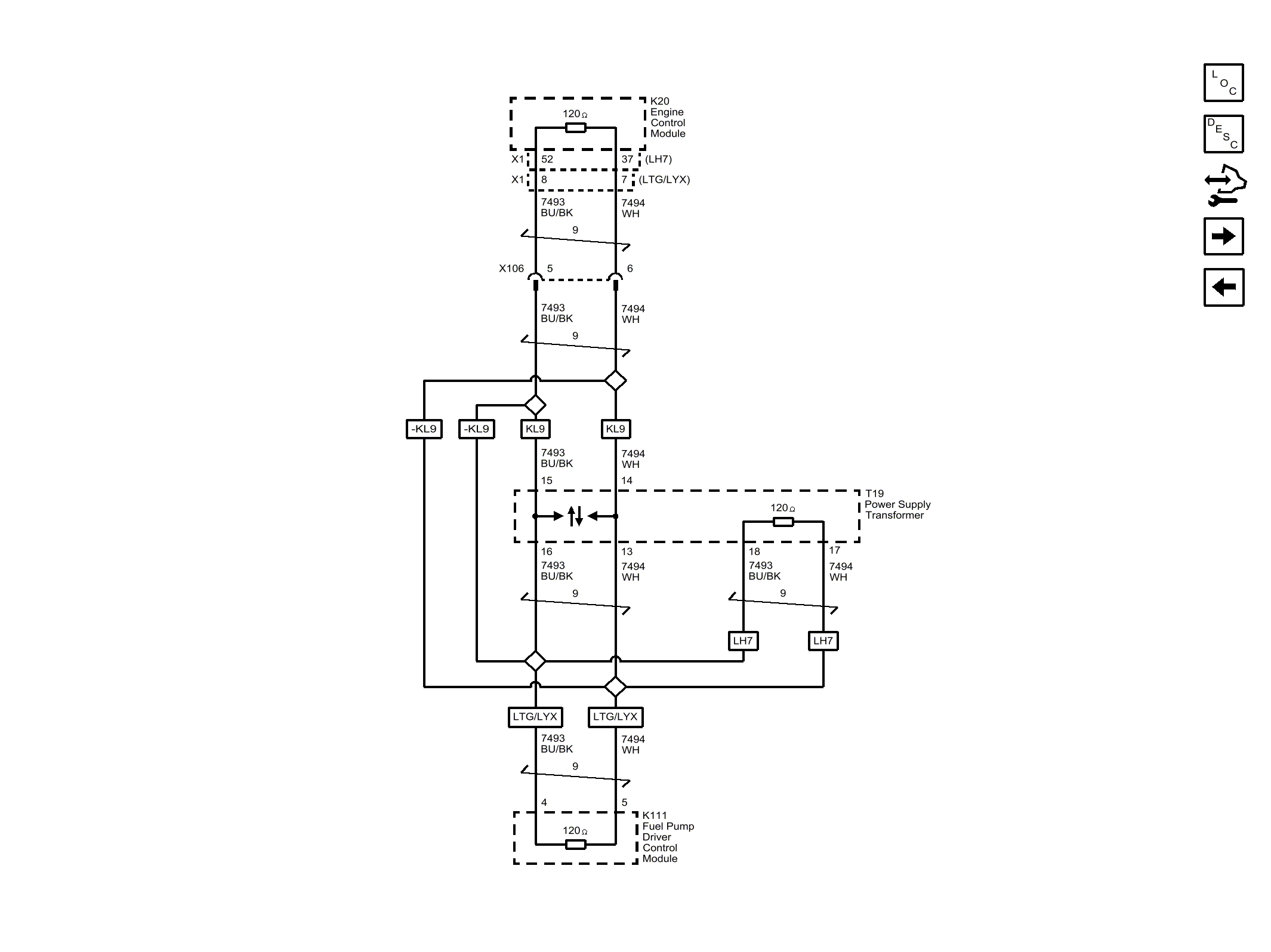

Fig 1: Powertrain High Speed GMLAN (LTG/LYX/LH7 without EPH)

GM4597799

Courtesy of GENERAL MOTORS COMPANY
