Powertrain High Speed GMLAN (LTG/LYX with EPH)

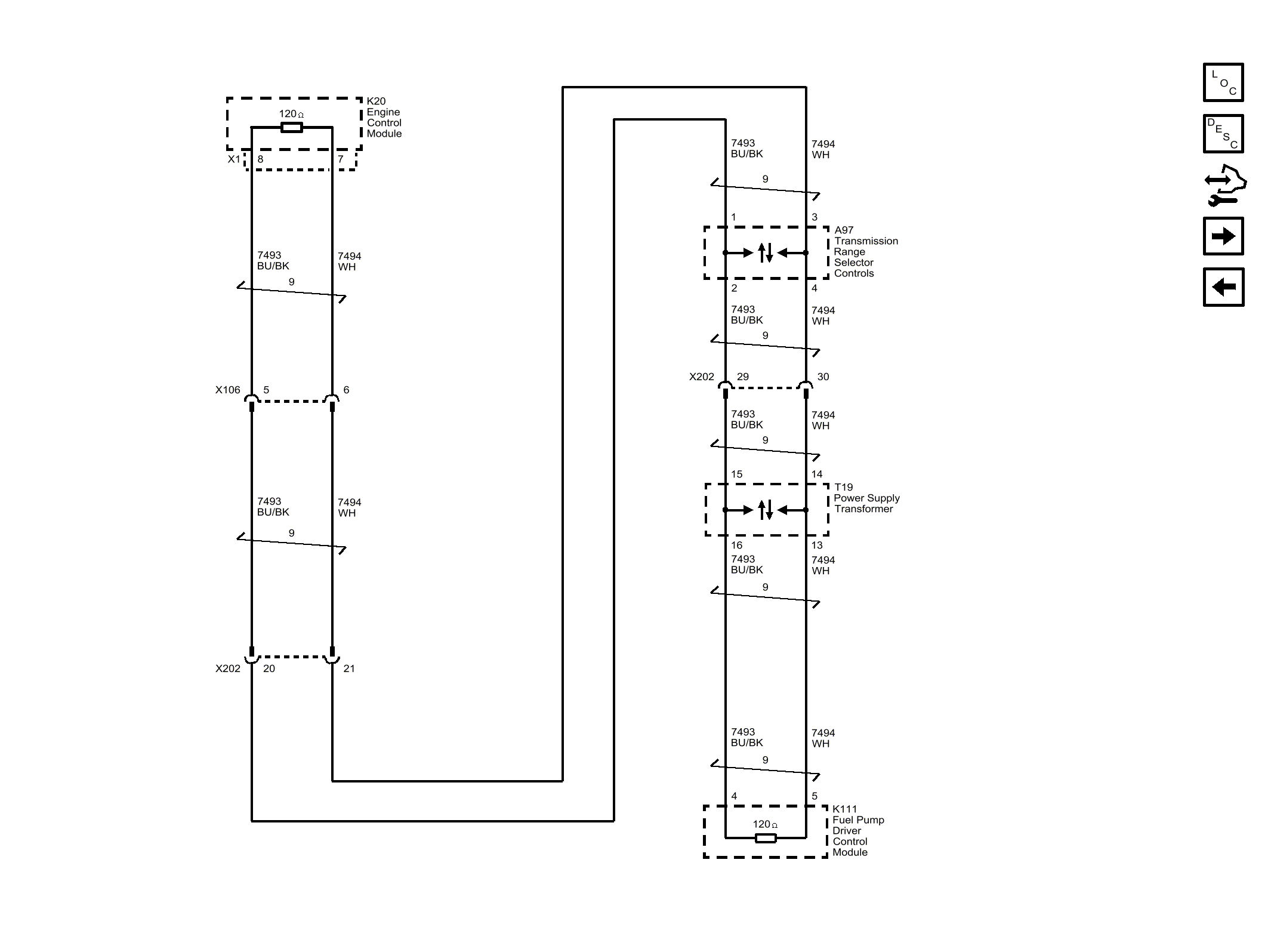

Fig 1: Powertrain High Speed GMLAN (LTG/LYX with EPH)

GM5051157

Courtesy of GENERAL MOTORS COMPANY
