Powertrain High Speed GMLAN (LH7 with EPH)

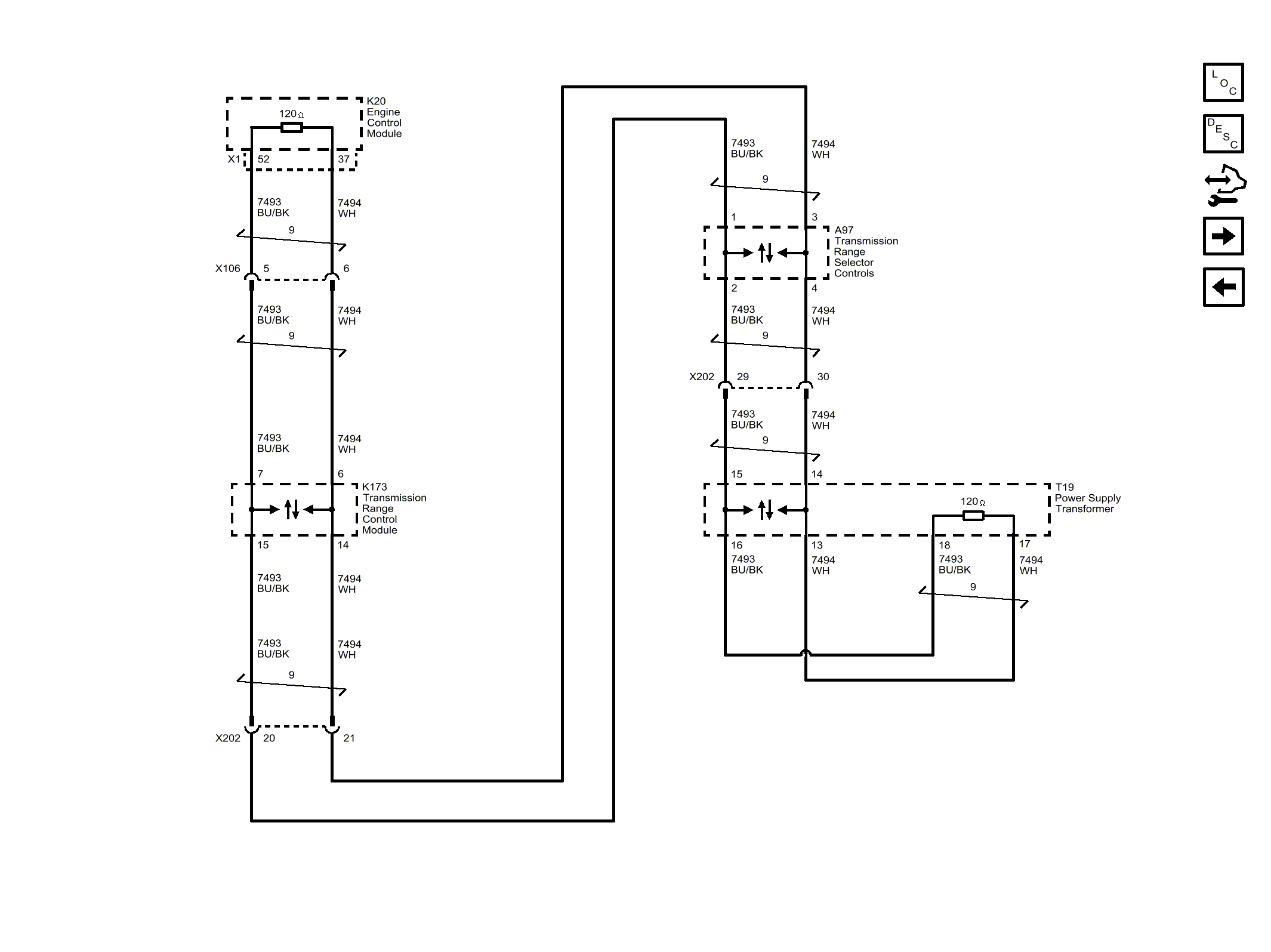

Fig 1: Powertrain High Speed GMLAN (LH7 with EPH)

GM5069975

Courtesy of GENERAL MOTORS COMPANY
