Rear Parking Assist Alarm Sensor Replacement (Terrain)

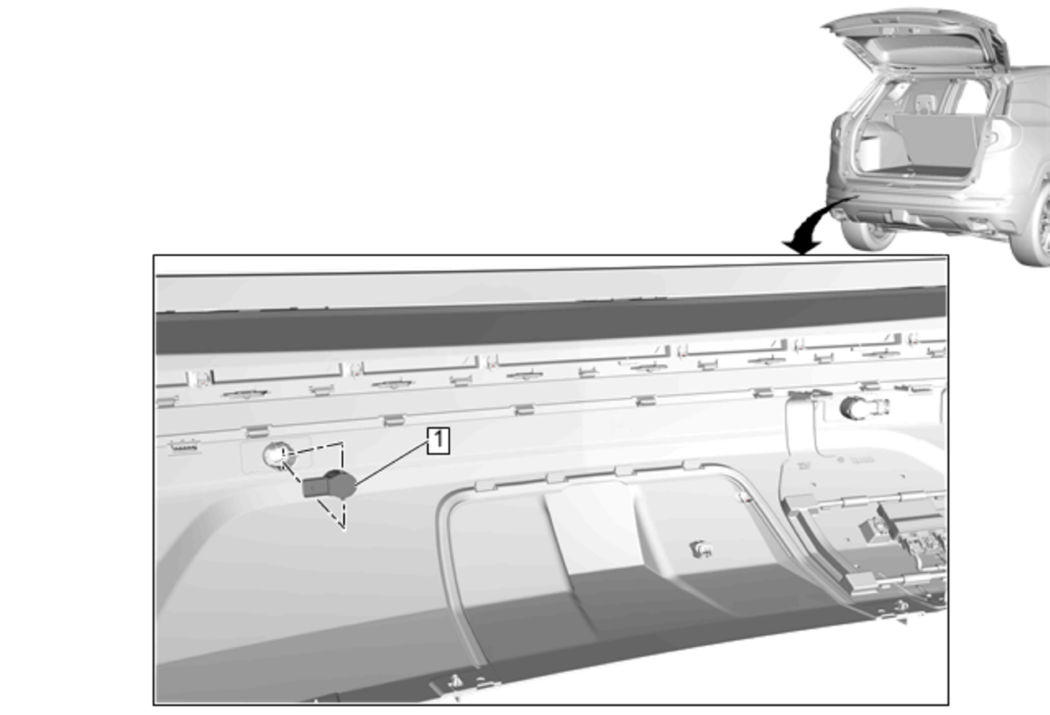

Fig 1: Rear Parking Assist Alarm Sensor (Terrain)

GM4692628

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Rear Bumper Fascia Energy Absorber Replacement (Terrain)

1

Rear Parking Assist Alarm Sensor

Procedure

Disconnect the electrical connector.
Release the locking tab from the rear parking assist alarm sensor bracket.
When the replacement is completed, use a scan tool to perform the appropriate reset functions. Refer to Parking Assist Sensor Learn Calibration
