360 Degree Vision - Front and Rear Cameras (UVH with Z88)

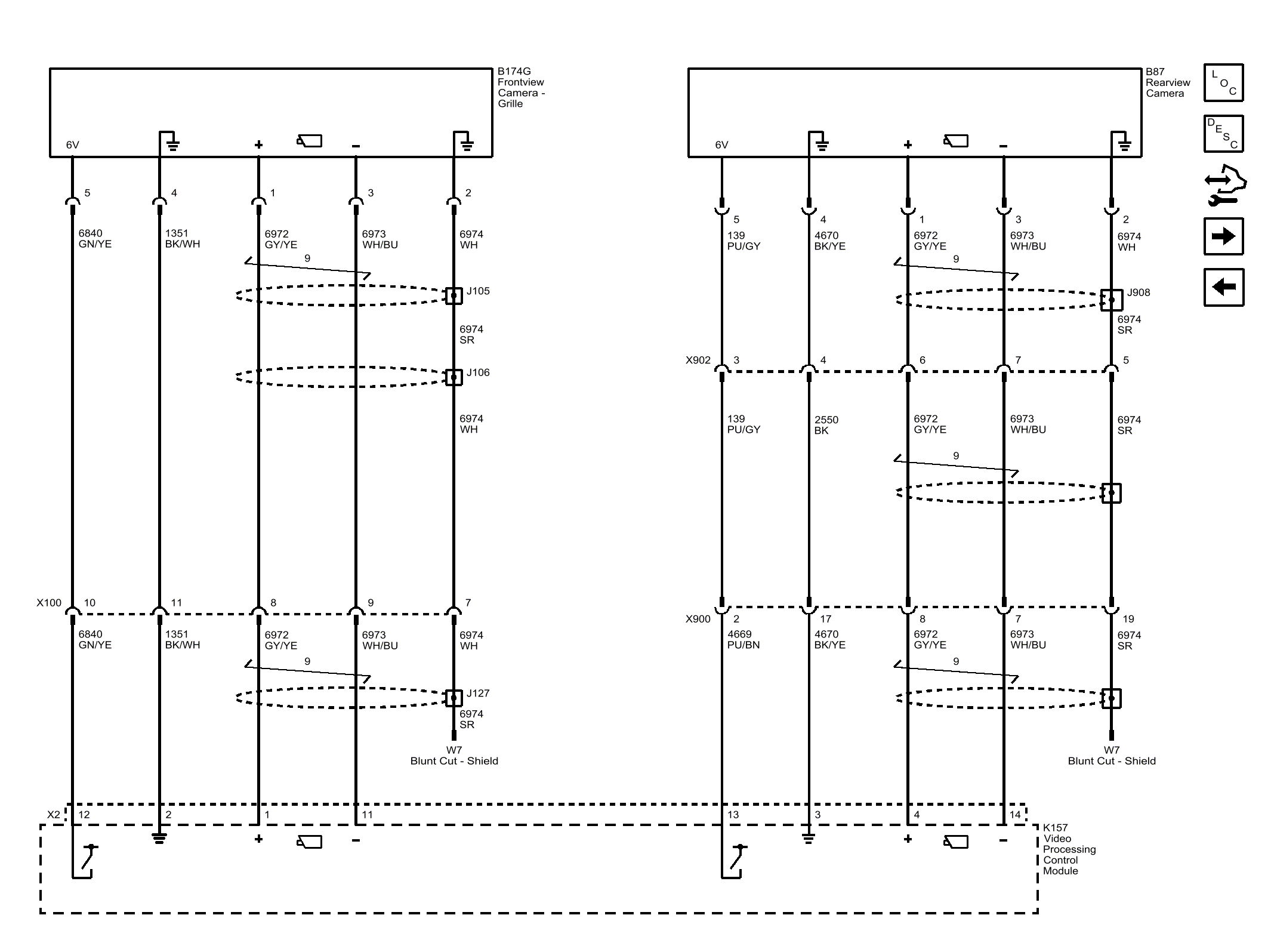

Fig 1: 360 Degree Vision - Front and Rear Cameras (UVH with Z88)

GM4597504

Courtesy of GENERAL MOTORS COMPANY
