Active Noise Cancellation Module Power, Ground and Serial Data (NKC with UZ6 without IOR)

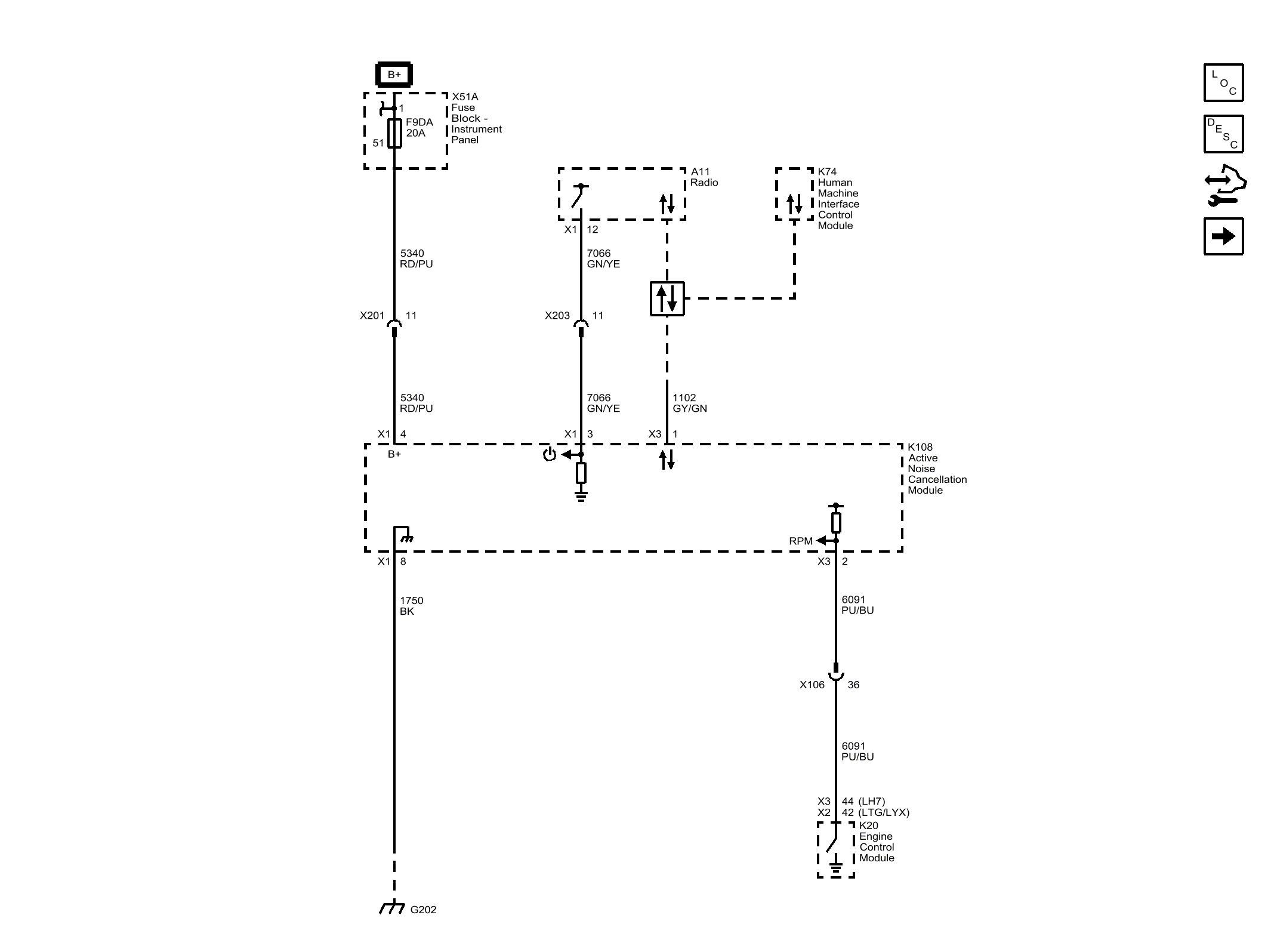

Fig 1: Active Noise Cancellation Module Power, Ground and Serial Data (NKC with UZ6 without IOR)
GM4626098Courtesy of GENERAL MOTORS COMPANY
