Active Noise Cancellation Microphones (IOR)

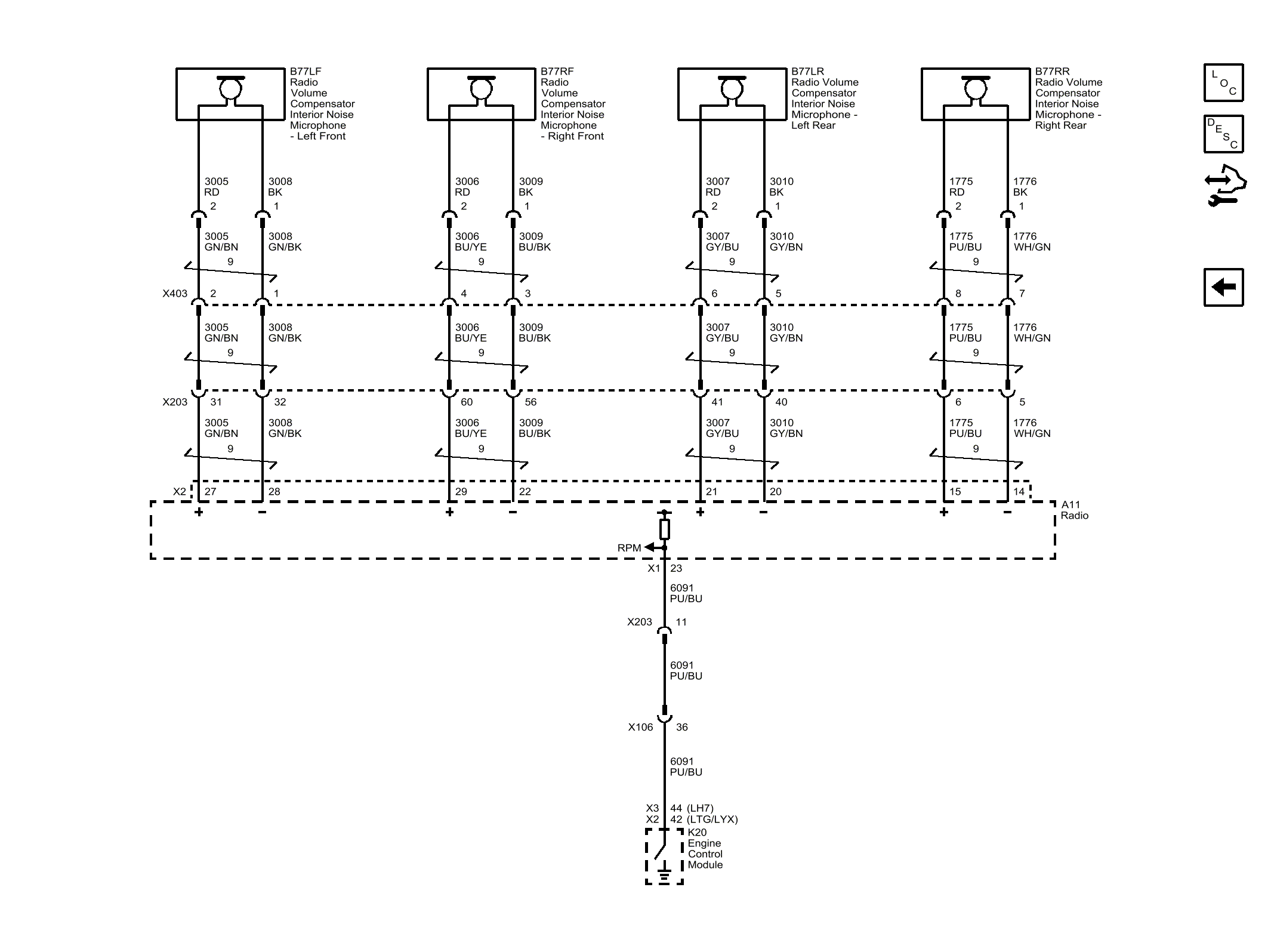

Fig 1: Active Noise Cancellation Microphones (IOR)

GM4597301

Courtesy of GENERAL MOTORS COMPANY
