X160 Engine Harness to Fuel Injector Harness

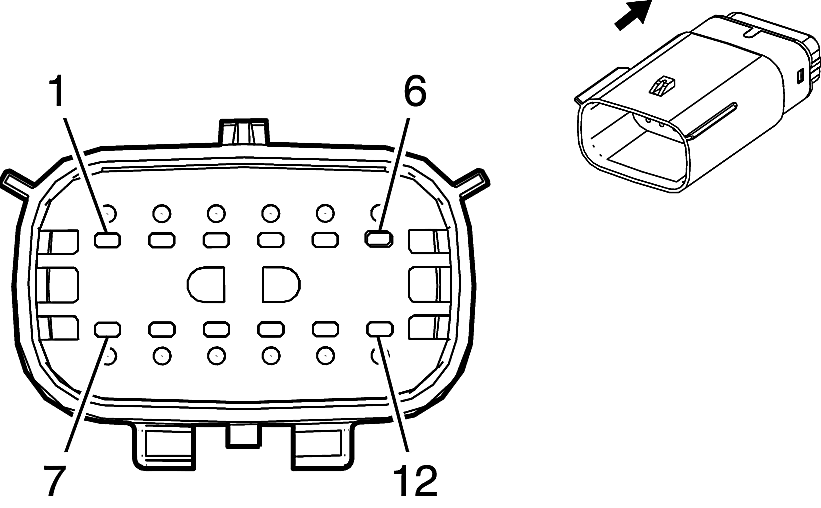

Connector Part Information Harness Type: Engine OEM Connector: 33472-1216 Service Connector: 19150019 Description: 12-Way F 150 MX Series, Sealed (BK)	Connector Part Information Harness Type: Fuel Injector OEM Connector: Not Available Service Connector: Service by Harness - See Part Catalog Description: 12-Way M

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13578813	J-35616-14 (GN)	J-38125-557	Not Available	Not Available	Not Available	Not Available
II	Not Required	Not Available	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.75	GY/BU	4804	I	LE2	Direct Fuel Injector (DFI) High Voltage Control Cylinder 4	1	0.75	GY/BU	4804	II	LE2
2	0.75	BN	4801	I	LE2	Direct Fuel Injector (DFI) High Voltage Control Cylinder 1	2	0.75	BN	4801	II	LE2
3	0.75	BN/WH	4901	I	LE2	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1	3	0.75	BN/WH	4901	II	LE2
4	0.75	BU	4802	I	LE2	Direct Fuel Injector (DFI) High Voltage Control Cylinder 2	4	0.75	BU	4802	II	LE2
5	0.75	BU/GY	4902	I	LE2	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 2	5	0.75	BU/GY	4902	II	LE2
6	-	-	-	-	-	Not Occupied	6	-	-	-	-	-
7	0.75	BU/WH	4904	I	LE2	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4	7	0.75	BU/WH	4904	II	LE2
8	0.5	BN/RD	2917	I	NT7/NU5/VRI	Fuel Rail Pressure Sensor 5V Reference	8	0.5	BN/RD	2917	II	NT7/NU5/VRI
9	0.75	GN	4803	I	LE2	Direct Fuel Injector (DFI) High Voltage Control Cylinder 3	9	0.75	GN	4803	II	LE2
10	0.75	GN/GY	4903	I	LE2	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 3	10	0.75	GN/GY	4903	II	LE2
11	0.5	BK/GN	2919	I	NT7/NU5/VRI	Fuel Rail Pressure Sensor Low Reference	11	0.5	BK/GN	2919	II	NT7/NU5/VRI
12	0.5	BU/WH	2918	I	NT7/NU5/VRI	Fuel Rail Pressure Sensor Signal	12	0.5	BU/WH	2918	II	NT7/NU5/VRI
