X101 Forward Lamp Harness to Active Grille Air Shutter Harness

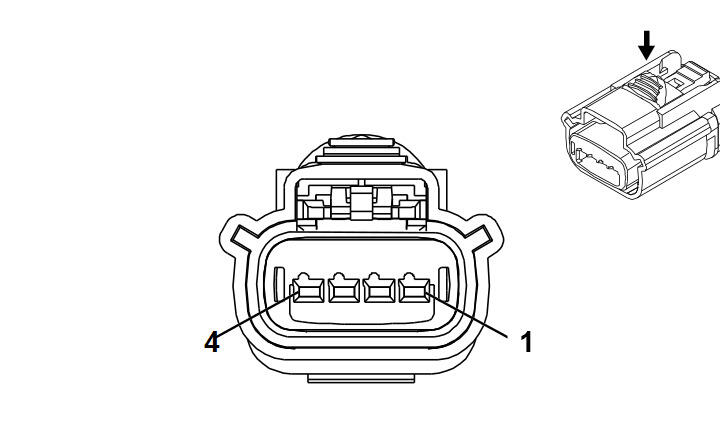

Connector Part Information Harness Type: Forward Lamp OEM Connector: 15514524 Service Connector: 19355605 Description: 4-Way F 1.5 OCS Series, Sealed (BK)	Connector Part Information Harness Type: Active Grille Air Shutter OEM Connector: 15514500 Service Connector: Service by Harness - See Part Catalog Description: 4-Way M 1.5 OCS Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-14 (GN)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-2A (GY)	No Tool Required	Not Required	Not Required	Not Required	Not Required
III	Not Required	J-35616-3 (GY)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.75 0.75	VT/BU VT/BU	5705 5705	II I	VRI WMI	Powertrain Main Relay Fused Control 6 Powertrain Main Relay Fused Control 6	1	0.75	VT/BU	5705	III	VRI
2	0.5 0.5	GN/VT GN/VT	4621 4621	II I	VRI WMI	Local Interconnect Network Serial Data Bus 21 Local Interconnect Network Serial Data Bus 21	2	0.5	GN/VT	4621	III	VRI
3	-	-	-	-	-	Not Occupied	3	-	-	-	-	-
4	0.75 0.75	BK BK	1150 1150	II I	VRI WMI	Ground Ground	4	0.75	BK	1150	III	VRI
