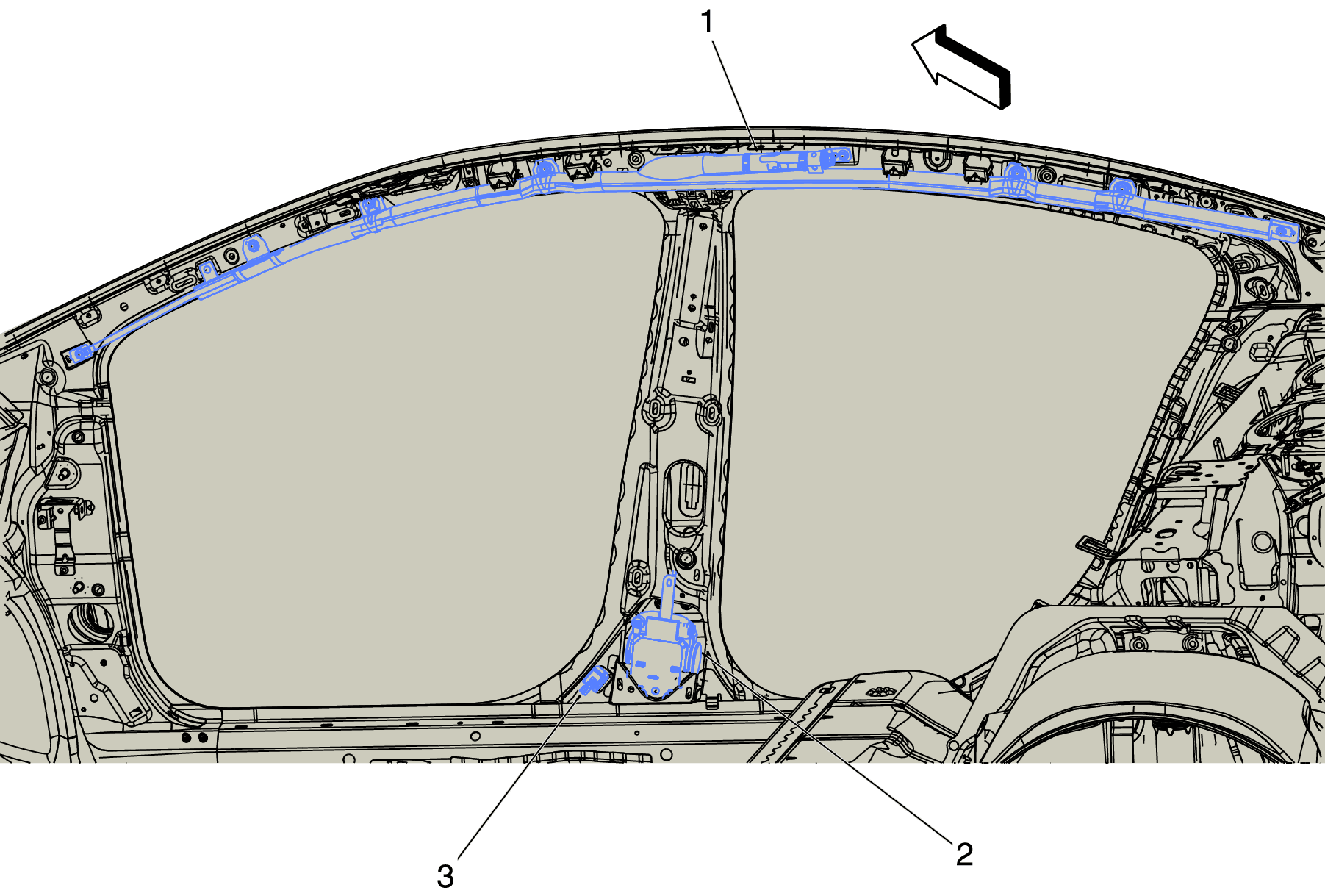

Right Side of the Passenger Compartment Components

GM3752827
Right Side of the Passenger Compartment Components

Items
1. F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right
2. F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger
3. B63RF Side Impact Sensor - Right Front B63RF Side Impact Sensor - Right Front
