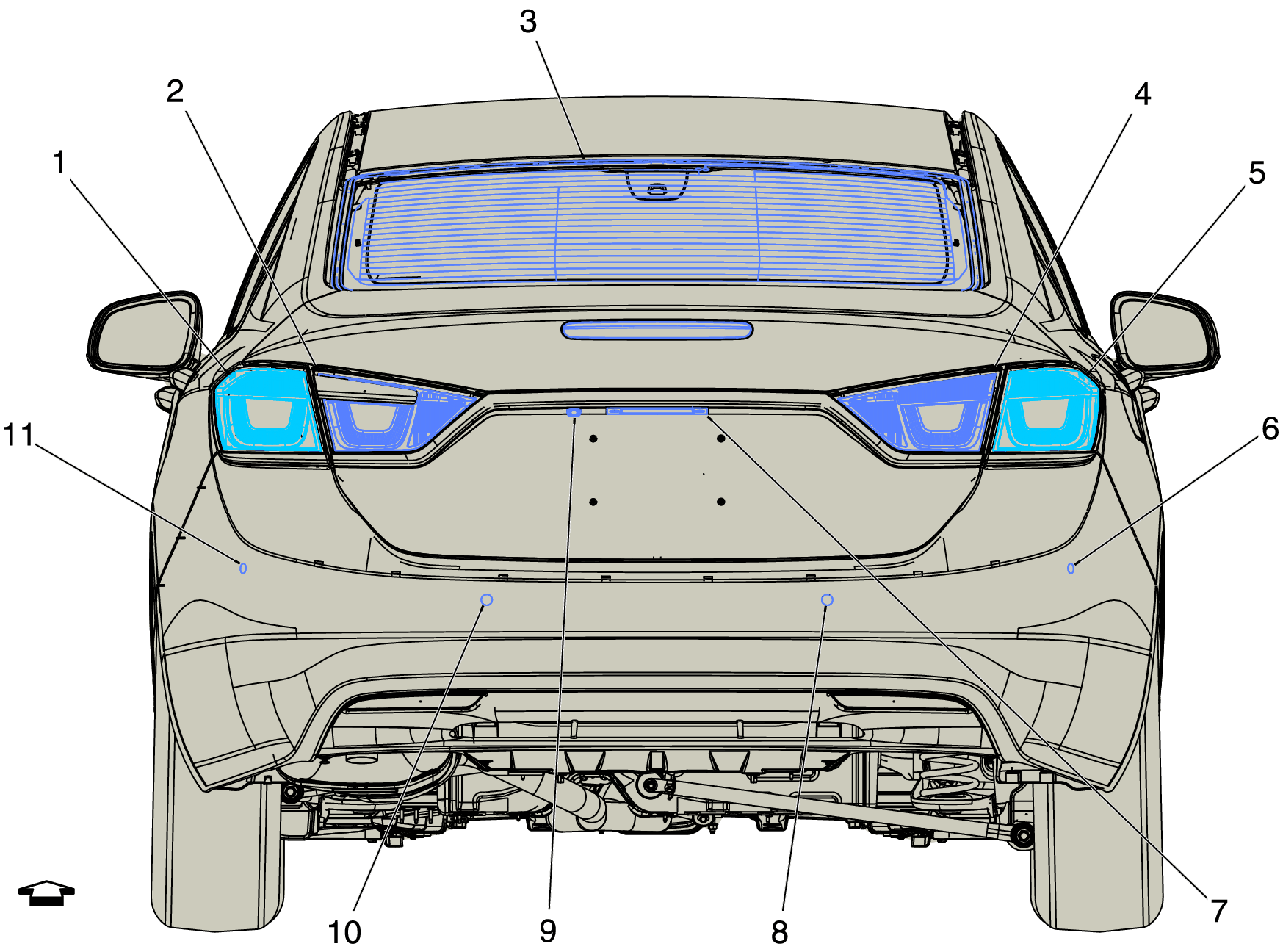

Rear of the Vehicle Components
Rear of the Vehicle Components
| Items |
|---|
| 1. E42L Tail Lamp Assembly - Left |
| 2. E58L Rear Compartment Lid Tail Lamp Assembly - Left |
| 3. E18 Rear Defogger Grid E18 Rear Defogger Grid X1E18 Rear Defogger Grid X2 |
| 4. E58R Rear Compartment Lid Tail Lamp Assembly - Right |
| 5. E42R Tail Lamp Assembly - Right |
| 6. B306H Parking Assist Sensor - Rear Right Outer B306H Parking Assist Sensor - Rear Right Outer |
| 7. S58A Rear Compartment Lid Unlatch Switch - Exterior S58A Rear Compartment Lid Unlatch Switch - Exterior (Hatchback)S58A Rear Compartment Lid Unlatch Switch - Exterior (Notchback) |
| 8. B306G Parking Assist Sensor - Rear Right Middle B306G Parking Assist Sensor - Rear Right Middle |
| 9. B87 Rearview Camera B87 Rearview Camera (Hatchback)B87 Rearview Camera (Notchback) |
| 10. B306F Parking Assist Sensor - Rear Left Middle B306F Parking Assist Sensor - Rear Left Middle |
| 11. B306E Parking Assist Sensor - Rear Left Outer B306E Parking Assist Sensor - Rear Left Outer |
