Airbag Sensing and Diagnostic Module Replacement

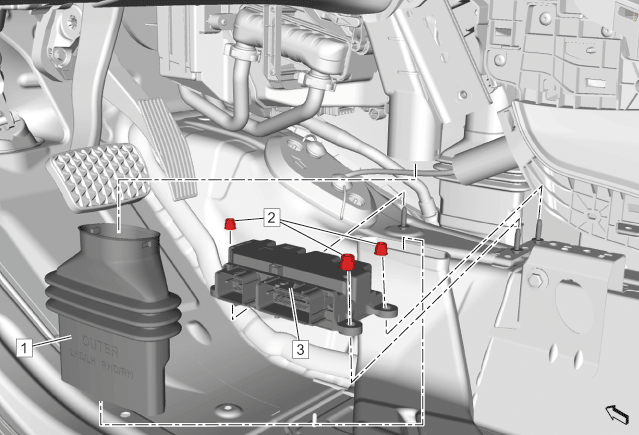

GM4087977
Callout Component Name

Preliminary Procedures

  1. Front Floor Console Extension Panel Replacement
  2. Instrument Panel Tie Bar Brace Replacement
1 Floor Front Air Outlet Duct Adapter
2 Airbag Sensing and Diagnostic Module Nut [3x]
CAUTION:

Fastener Caution


Tighten
9 N.m (80 lb in)
3 Airbag Sensing and Diagnostic Module

Procedure

  1. Disconnect the electrical connectors.
  2. Perform the scan tool learn/reset function: Control Module References
