Heater and Air Conditioning Control Replacement

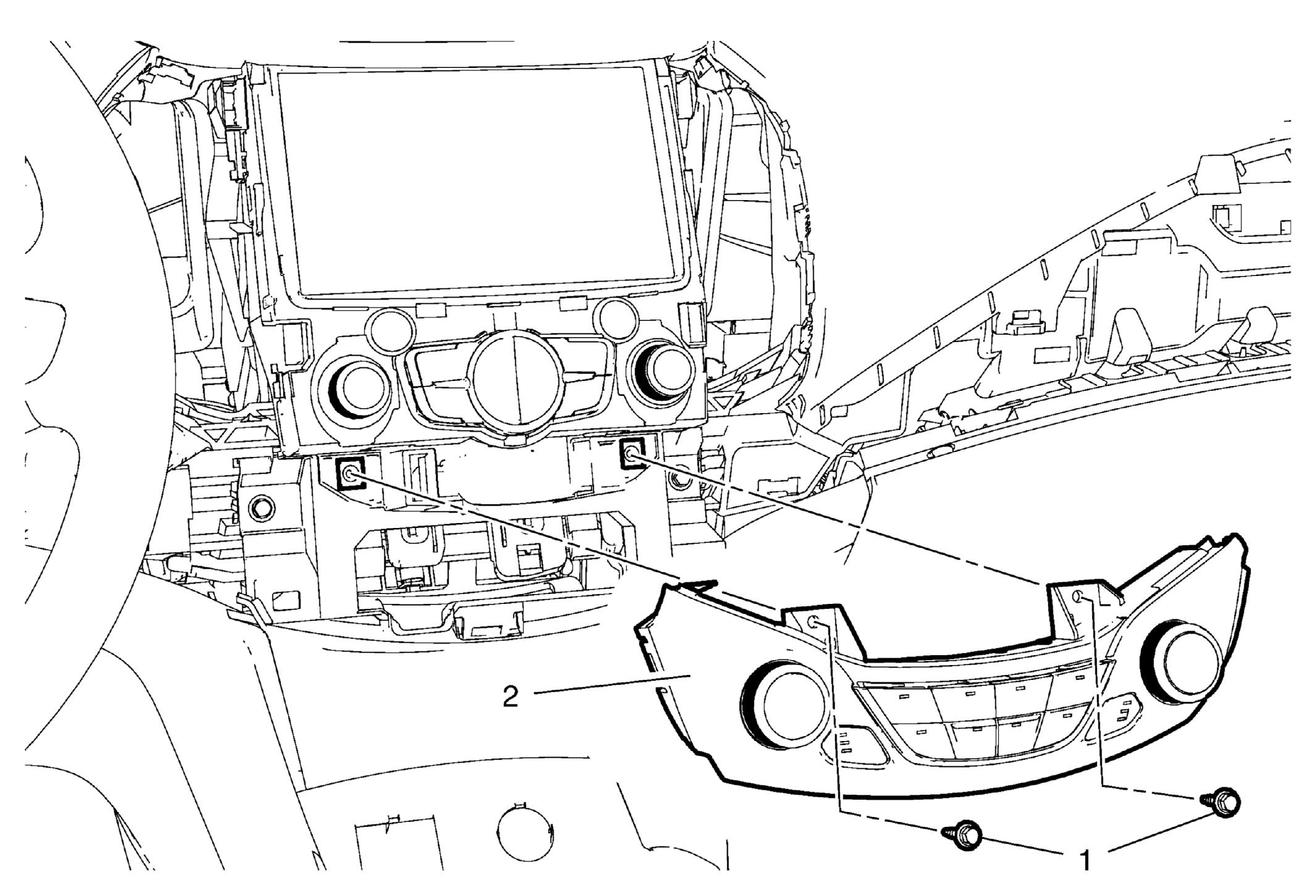

GM3686302
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Center Air Outlet Replacement
  2. Instrument Panel Center Trim Pad Replacement
1 Heater and Air Conditioning Control Fastener[2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Heater and Air Conditioning Control
Procedure
Disconnect the electrical connector.
