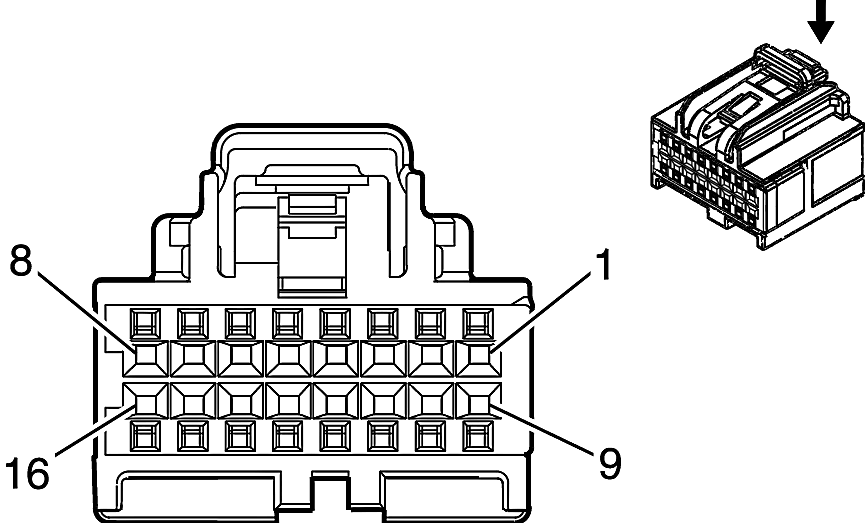

T3 Audio Amplifier X4
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13819411
- Service Connector: 13582574
- Description: 16-Way F 0.64 OCS Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19300660 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
WH/GN |
3997 |
MOST Serial Data (-) |
I |
- |
| 4 |
0.35 |
GY/VT |
3998 |
MOST Serial Data (+) |
I |
- |
| 5 |
0.35 |
WH/GN |
3997 |
MOST Serial Data (-) |
I |
- |
| 6 |
0.35 |
GY/VT |
3998 |
MOST Serial Data (+) |
I |
- |
| 7 - 13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.13 |
VT/BK |
3999 |
MOST Control |
I |
- |
| 15 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
